This product is a 12.1-inch SVGA color display with high luminance and long-life lamps. It features a replaceable lamp unit structure and is compatible with LTD121GA0S (12.1 XGA). Additionally, it is RoHS compliant.

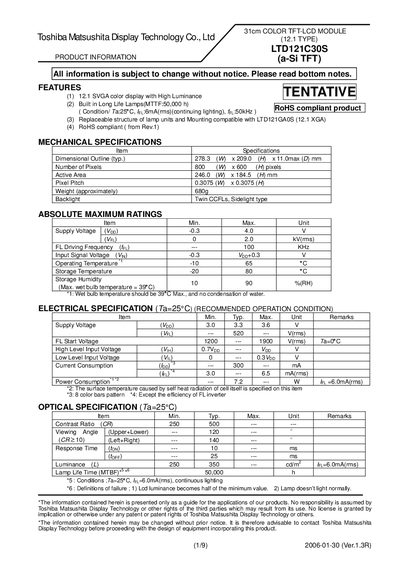

The Toshiba LTD121C30S is a 12.1" SVGA color TFT‑LCD module with a high‑luminance backlight and replaceable lamp units. It offers a resolution of 800 × 600 pixels, a pixel pitch of 0.3075 mm, and a typical luminance of 350 cd/m².
The document provides detailed mechanical outlines, electrical supply requirements, timing specifications, connector pin assignments, and extensive safety precautions. It also notes that the module is not intended for extreme‑environment or life‑critical applications.
| Display size | 12.1" (31 cm) diagonal |
|---|---|
| Resolution | 800 × 600 pixels |
| Pixel pitch | 0.3075 mm (W) × 0.3075 mm (H) |
| Supply voltage (typical) | 3.3 V |
| Power consumption (typical) | 7.2 W |
| Contrast ratio | 500:1 (typical) |
| Luminance (typical) | 350 cd/m² |
| Lamp lifetime (MTBF) | 50,000 h |
| Operating temperature range | -10 °C to 65 °C |
The recommended supply voltage is 3.3 V (typical), with a range of 3.0 V to 3.6 V.
The lamp has a mean time between failures (MTBF) of 50,000 hours under the specified conditions.
No. The standard LCD module is not designed for extreme vibration, shock, or life‑critical uses such as aircraft navigation or medical life‑support systems.
Do not ingest, inhale, or touch the liquid crystal material; rinse eyes or mouth with water and wash skin with alcohol if contact occurs.
