This document is a guide for the applications of Toshiba Matsushita Display Technology's products. It provides information on the features and characteristics of the products, and advises contacting Toshiba Matsushita Display Technology before proceeding with equipment design.

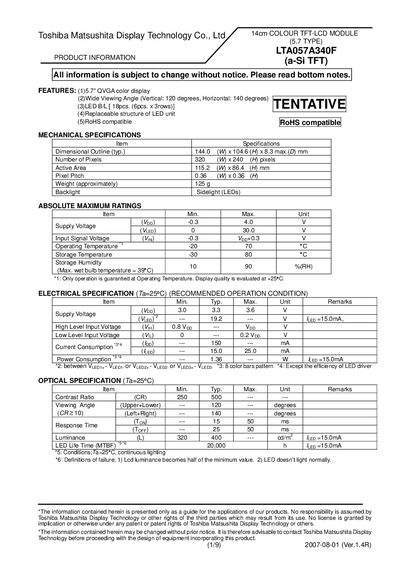

The LTA057A340F is a 5.7‑inch QVGA colour TFT‑LCD module with a wide viewing angle (120° vertical, 140° horizontal) and replaceable LED backlight. It complies with RoHS and is intended for general display applications.
The datasheet provides detailed mechanical outlines, electrical supply ranges, optical performance, connector pin assignments, and safety guidelines. It also includes timing charts, pin‑out diagrams, and recommended operating conditions to aid designers in integrating the module into their products.
| Display size | 5.7 inches (QVGA) |
|---|---|
| Resolution | 320 × 240 pixels |
| Active area | 115.2 mm × 86.4 mm |
| Pixel pitch | 0.36 mm |
| Operating temperature | -20 °C to 70 °C |
| Contrast ratio | 250 – 500 |
| Response time | 25 – 50 ms |
| Power consumption | 1.36 W (typical) |
| Weight | ≈125 g |
The display provides a vertical viewing angle of 120° and a horizontal viewing angle of 140°.
The input signals use connector IMSA‑9637S‑33A‑GF with a 0.5 mm pitch and lower‑face contacting.
