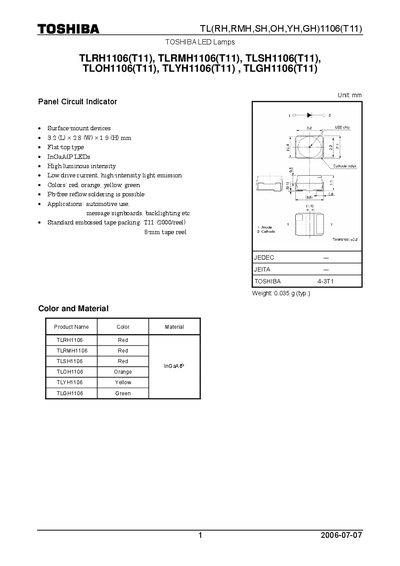

This document is the datasheet of TOSHIBA LED Lamps TLRH1106(T11), TLRMH1106(T11), TLSH1106(T11), TLOH1106(T11), TLYH1106(T11) , TLGH1106(T11), mainly introducing the product features, parameters, packaging, application scenarios and other information.
The TL(RH,RMH,SH,OH,YH,GH)1106(T11) series are surface‑mount InGaAlP LEDs offered in red, orange, yellow and green colors. They are designed for automotive signboards, backlighting and other general display applications, and are supplied on 8‑mm tape reels (2,000 pcs per reel) with standard embossed tape packing (T11).\n\nKey electrical parameters include a typical forward voltage of 1.8 V, a maximum forward current of 70 mA, and operation over a temperature range of –40 °C to 100 °C. Optical performance varies by color, with typical luminous intensities ranging from 160 cd (red) to 630 cd (green) at 50 mA, and peak wavelengths between 574 nm (green) and 644 nm (red).
| Package size | 3.2 mm L × 2.8 mm W × 1.9 mm H |
|---|---|
| Weight (typ.) | 0.035 g |
| Forward voltage (typ.) | 1.8 V |
| Operating temperature range | -40 °C to 100 °C |
| Luminous intensity (typ.) – green | 250 cd |
| Peak wavelength – red | 644 nm |
| Reel quantity | 2,000 pcs per reel |
The series is offered in red, orange, yellow and green.
The typical forward voltage is 1.8 V.
Each reel contains 2,000 pieces.
The LEDs can operate from –40 °C to 100 °C.
