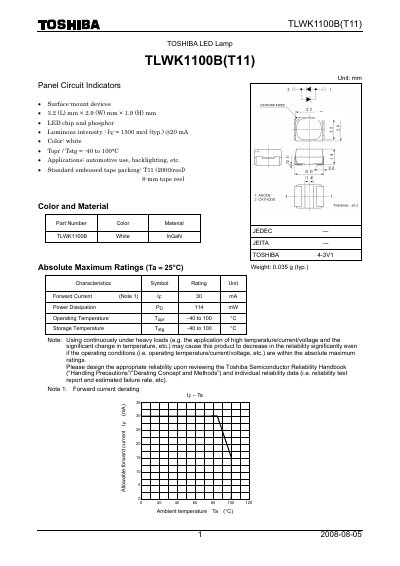

This document provides technical specifications for the TOSHIBA LED Lamp TLWK1100B(T11). The lamp features small size, high luminous intensity, and white color. It is suitable for automotive use and backlighting applications.
The TLWK1100B(T11) is a white InGaN LED designed for automotive and back‑lighting applications. The document provides electrical and optical characteristics, including forward voltage, current, luminous intensity, and operating temperature ranges.
Packaging, storage, and mounting guidelines are detailed, covering moisture‑proof aluminum reels, recommended reflow soldering profiles, and cleaning solvents. Safety and usage restrictions are also listed to ensure reliable integration into electronic products.
| Power Dissipation | 114 mW |
|---|---|
| Operating Temperature | -40 °C to 100 °C |
| Luminous Intensity (typ) | 1500 mcd |
| Color | White |
| Weight (typ) | 0.035 g |
| Packaging | Aluminum envelope with silica gel |
| Storage Temperature (unopened) | 5 °C to 30 °C |
| Storage Humidity (max) | 90 % RH |
Store unopened reels for up to 12 months at 5 °C to 30 °C with a maximum humidity of 90 % RH.
The maximum reflow temperature is 240 °C for Pb soldering and 260 °C for Pb‑free soldering.
The LED can operate from –40 °C to 100 °C.
