TL12W02-L(T30) is a LED lamp from Toshiba. It has a high luminous flux of 60 lm(typ.) @250 mA, a warm white color, can work in a temperature range of -40 to 100℃ and is reflow-solderable.

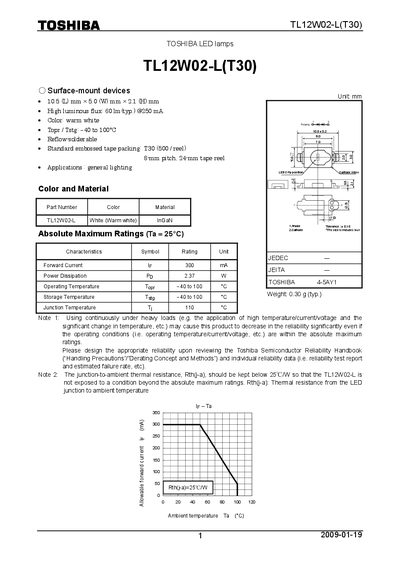

The Toshiba TL12W02-L(T30) is a surface‑mount LED with a typical luminous flux of 60 lm at 250 mA and a warm‑white color. The document provides absolute maximum ratings, electrical and optical characteristics, and recommended soldering and handling procedures.
Packaging details, tape dimensions, storage conditions, and safety restrictions are also covered, helping designers ensure reliable integration of the component in general lighting applications.
| Package dimensions (L × W × A) | 10.5 mm × 5.0 mm × 2.1 mm |
|---|---|
| Forward current (IF) | 300 mA |
| Forward voltage (typical, 250 mA) | 6.8 V |
| Power dissipation (Pp) | 2.37 W |
| Luminous flux (typical, 250 mA) | 60 lm |
| Operating temperature range | -40 °C to 100 °C |
| Thermal resistance (junction‑to‑ambient) | < 25 °C/W |
| Weight (typical) | 0.30 g |
The recommended reflow profile limits temperature to 240 °C for Pb soldering and 260 °C for Pb‑free soldering.
The junction‑to‑ambient thermal resistance should be kept below 25 °C/W.
