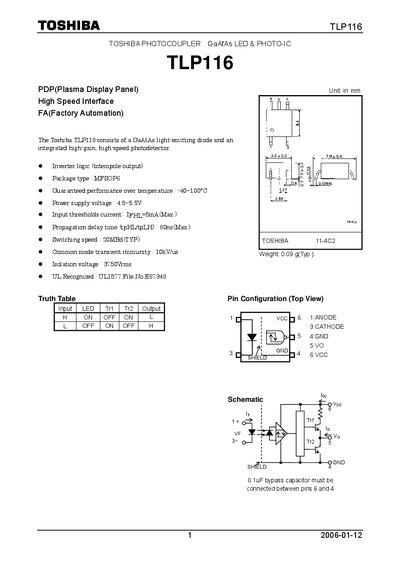

TLP116 is a photocoupler manufactured by Toshiba, consisting of a GaAℓAs LED and an integrated high-gain, high-speed photodetector. It is suitable for inverter logic and high-speed interface applications, and features a wide temperature range, low power consumption, and fast switching speed.
The TLP116 is a GaAs LED and integrated high‑gain, high‑speed photodetector designed for PDP (Plasma Display Panel) high‑speed interface applications in factory automation. It features a MFSOP6 package, isolation voltage of 3750 Vrms, and UL1577 certification.
The document lists maximum ratings, electrical characteristics, switching performance, and recommended operating conditions, along with several test circuits and graphs illustrating propagation delay, switching speed, and temperature dependence.
| Supply voltage (VCC) | 4.5–5.5 V |
|---|---|
| Propagation delay time (tpHL/tpLH) | 6 ns (max) |
| Switching speed | 20 MBd (typ) |
| Isolation voltage | 3750 Vrms |
| Forward current (IF) | 20 mA |
The device should be powered with a supply voltage between 4.5 V and 5.5 V.
The propagation delay time (tpHL/tpLH) is specified as up to 6 ns.
The device provides an isolation voltage of 3750 Vrms.
Typical switching speed is 20 MBd.
