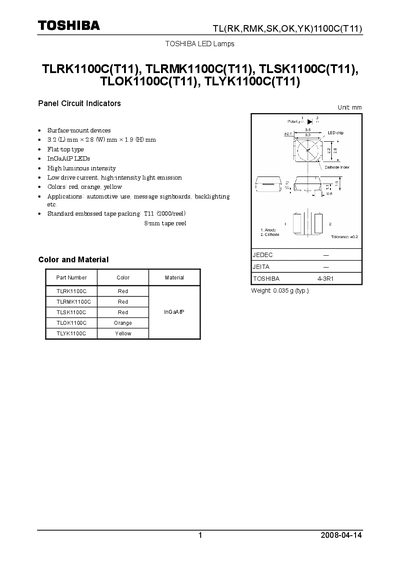

This datasheet provides information about TOSHIBA LED Lamps TLRK1100C(T11)，TLRMK1100C(T11)，TLSK1100C(T11)，TLOK1100C(T11)，TLYK1100C(T11), including product model, appearance size, packaging type, color, application scenario and standard packaging.
The TL(RK,RMK,SK,OK,YK)1100C(T11) series are surface‑mount InGaAlP LEDs offered in red, orange and yellow colors for automotive, signboard and backlighting applications. They feature low drive current, high luminous intensity and are supplied on 8‑mm tape reels.
Key specifications include a typical forward voltage of 1.8 V, luminous intensity ranging from 100 mcd to 1250 mcd depending on rank, and dominant wavelengths between 592 nm and 644 nm. The devices are packaged in 3.2 × 2.8 × 1.9 mm dimensions, weigh 0.035 g, and are shipped in reels of 2,000 pieces sealed with silica gel.
| Typical forward voltage (V) | 1.8 |
|---|---|
| Luminous intensity range (mcd) | 100‑500 (RA), 160‑320 (SA), 250‑500 (TA), 400‑800 (UA), 630‑1250 (VA) |
| Dominant wavelength (nm) | 644 (TLRK1100C), 636 (TLRMK1100C), 623 (TLSK1100C), 612 (TLOK1100C), 592 (TLYK1100C) |
| Package dimensions (mm) | 3.2 L × 2.8 W × 1.9 H |
| Typical weight (g) | 0.035 |
| Reel packing quantity | 2,000 pieces per reel |
| Available colors | Red, Orange, Yellow |
The typical forward voltage is 1.8 V for all variants.
The series is available in red, orange, and yellow colors.
They are supplied on 8‑mm tape reels of 2,000 pieces, sealed in an aluminum pack with silica gel.
