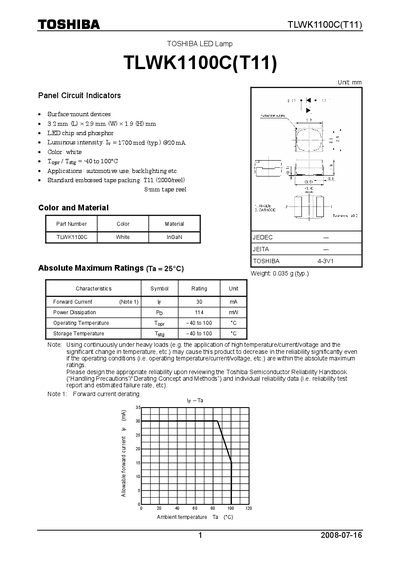

This document is the specification of TOSHIBA TLWK1100C(T11) Panel Circuit Indicators. It mainly introduces the product's appearance, size, color, working temperature range, luminous intensity, application scenarios and other information.
The TLWK1100C is a white InGaN LED designed for general display lighting in automotive and other electronics. It offers a typical forward voltage of 3.2 V at 20 mA, a luminous intensity of 1700 mcd, and operates from –40 °C to 100 °C. Key electrical parameters such as forward current (30 mA) and power dissipation (114 mW) are listed, along with optical data and chromaticity coordinates.
The device is supplied on an 8‑mm tape reel (2000 pcs per reel) sealed in an aluminum envelope with silica gel. Recommended storage is 5 °C‑30 °C at ≤60 % RH for up to 168 h after opening, with specific baking procedures if moisture is detected. Handling cautions include protection against electrostatic discharge and over‑voltage, and soldering limits are provided for both leaded and lead‑free processes.
| Forward Voltage (typ) @20 mA | 3.2 V |
|---|---|
| Reverse Voltage @1 mA | 0.75 V |
| Forward Current | 30 mA |
| Luminous Intensity (typ) @20 mA | 1700 mcd |
| Operating Temperature Range | -40 °C to 100 °C |
| Storage Temperature Range | -40 °C to 100 °C |
| Power Dissipation | 114 mW |
| Weight (typ) | 0.035 g |
| Package Type | 8‑mm tape reel, 2000 pcs per reel |
| Color / Material | White InGaN |
The typical forward voltage is 3.2 V at a test current of 20 mA.
Store it at 5 °C‑30 °C with ≤60 % RH and use it within 168 hours; if moisture is detected, bake at 60 °C for 24‑48 h before use.
The typical luminous intensity is 1700 mcd.
