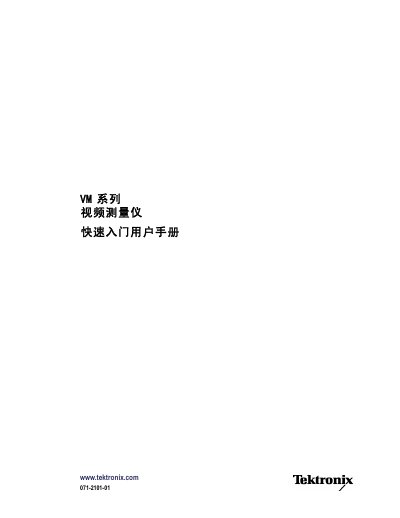

Tektronix VM Series Video Measuring Instrument Quick Start Guide

This manual introduces the features and operation of the VM series video measurement instruments.

Brand: Tektronix
Category: Other device
Document type: Quick Start Guide
Language: Chinese
Pages: 88
File format: PDF
File size: 6.2 MB
Published: 13 April, 2012
Updated: 30 September, 2023
MD5 checksum: F5F3570B9B4F5713E4DC1F7CBC0F5117
PDF: Tektronix VM Series Video Measuring Instrument Quick Start Guide PDF

About this manual

The guide introduces the VM series video measuring instrument, describing its main functions such as automatic video measurement, support for SD, HD, and VGA formats, and integration with Tektronix oscilloscopes. It provides safety precautions, installation steps, and an overview of the front, side, and rear panels.

Detailed sections cover connecting power and network, configuring input signal formats, performing measurements, and troubleshooting. The document also lists supported Tektronix oscilloscopes and optional accessories, and explains how to upgrade software and use the built‑in vector scope display. This manual is written in Chinese.

What's inside

Safety Overview
Introduction
Main Functions
Supported Products
Installation
Standard and Recommended Accessories
Power On/Off Procedures
Network Connection
Input Signal Requirements – SD/HD
Input Signal Requirements – VGA

Frequently asked questions

How do I power on the VM series instrument?

Press the power switch to turn on the instrument.

Which Tektronix oscilloscopes can be used with the VM series?

Supported oscilloscopes include VM5000HD, VM5000, TDS5104, TDS5104B, TDS5054, TDS5054B, DPO7254, DPO7104, DPO7054, and DPO7354.
