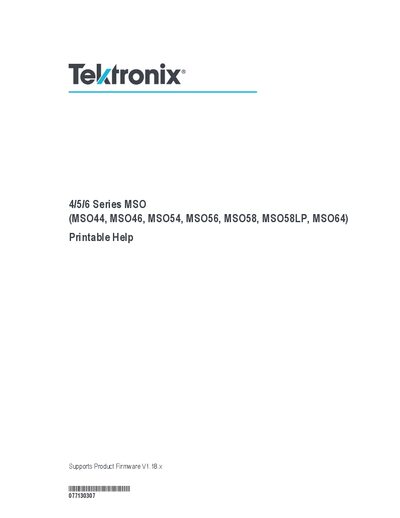

Tektronix 4/5/6 Series MSO User Manual Printable Help

About this manual

This printable help guide provides detailed information for the Tektronix 4/5/6 Series MSO oscilloscopes (MSO44, MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64). It includes licensing information, installation steps, power‑on procedures, and how to configure the instrument for both bench and rack‑mount use.

The manual describes the user interface, front‑panel controls, and a wide range of measurement and analysis functions such as waveform acquisition, trigger setup, spectrum view, and advanced power and jitter analysis. It also lists optional accessories, probe compatibility, and network connectivity options.

What's inside

• Software License Agreement
• Accessories and Options
• Installation and Power‑On Procedures
• Front Panel Controls and Connectors
• User Interface and Configuration Menus
• Measurement Setup and Analysis
• Serial Bus and Trigger Options
• Network and Remote Access

Specifications

Frequently asked questions

How can I connect the oscilloscope to a PC using a USB cable?

Use a USB cable to connect the rear USB port of the instrument to the PC; the manual provides the connection steps on page 5.

How do I unmount a network drive from a Windows 10 instrument?

Select the network drive in the instrument’s file manager and choose the unmount option as described on page 5.
