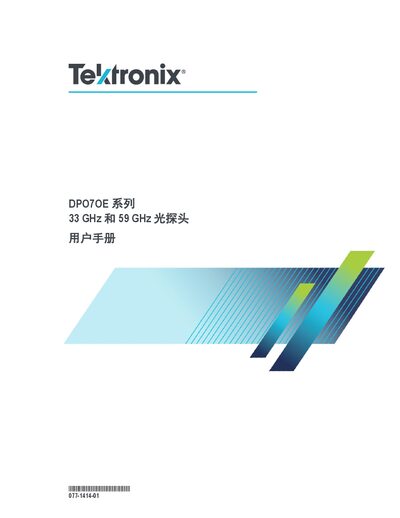

Tektronix DPO7OE Series 33 GHz and 59 GHz Optical Probe User Manual

About this manual

This manual provides detailed instructions for installing, configuring, and operating the DPO7OE series 33 GHz and 59 GHz optical probes used with Tektronix DPO/MSO70000 oscilloscopes. It includes safety guidelines, probe setup, signal attenuation, and cleaning procedures.

The document also describes the programming interface (PI) commands for probe control, such as setting optical reference receiver filters, wavelength, and querying probe gain. Technical specifications, including maximum input optical power and gain factors, are listed for reference. This manual is written in Chinese.

What's inside

• Safety Information
• Installation
• Probe Setup
• Operation Basics
• Calibration
• Optical Signal Attenuation
• Programming Interface Commands
• Technical Specifications

Specifications

Frequently asked questions

What is the maximum allowable input optical power for the DPO7OE1 probe?

The DPO7OE1 probe can accept up to 4 mW average and 8 mW peak input optical power.

Which command sets the optical reference receiver (ORR) filter?

Use the command CH:OPTIcal:RCVR with the desired filter option (OFF, FLAT33, FLAT, or USER).

How do I set the probe wavelength via the programming interface?

Send CH:OPTIcal:WLENgth [, USER | FACTory] to set the wavelength in nanometers.
