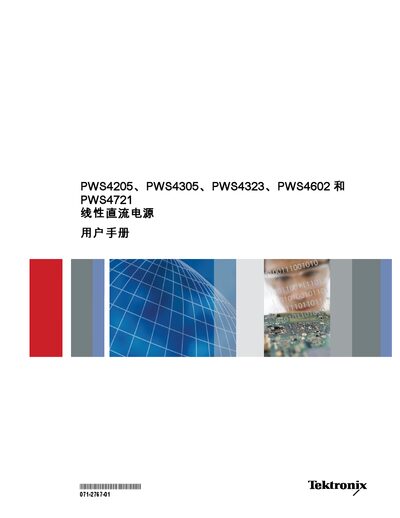

Tektronix PWS4205, PWS4305, PWS4323, PWS4602 and PWS4721 User Manual

The Tektronix user manual provides safety guidelines, installation steps, operation basics, and technical specifications for the PWS4205‑PWS4721 linear DC…

Brand: Tektronix
Category: Power Management
Document type: User Manual
Language: Chinese
Pages: 44
File format: PDF
File size: 1.3 MB
Published: 29 September, 2026
Updated: 29 September, 2026
MD5 checksum: 2624D9655E9BE90729FEA7064DD73B65
PDF: Tektronix PWS4205, PWS4305, PWS4323, PWS4602 and PWS4721 User Manual PDF

About this manual

This manual covers essential safety information, including grounding, proper fuse use, and handling precautions to prevent electric shock and fire. It also details the required qualifications for personnel performing maintenance and outlines warranty terms.

Installation instructions guide users through unpacking, verifying standard accessories, setting the 110 V/220 V selector switch, and connecting the unit. Subsequent sections describe front‑panel operation, GPIB address selection, voltage and current limit adjustments, and troubleshooting procedures. This manual is written in Chinese.

What's inside

General Safety Overview
Compliance Information
EMC Compliance
Safety Compliance
Environmental Considerations
Foreword
Key Features
Getting Started
Standard Accessories
Optional Accessories

Specifications

Input Voltage Selector	110 V / 220 V
Connector Type	12‑pin connector
GPIB Address Selection	Adjustable via arrow keys
Current Limit Adjustment	User‑adjustable
Voltage Limit Adjustment	User‑adjustable

Frequently asked questions

How do I turn the power supply on?

Set the 110 V/220 V selector switch to the correct voltage and press the power switch.

How can I change the GPIB address of the power supply?

Use the up and down arrow keys on the front panel to select the desired GPIB address.

What type of fuse should be used with this power supply?

Only the fuse type and rating specified for the product may be used.
