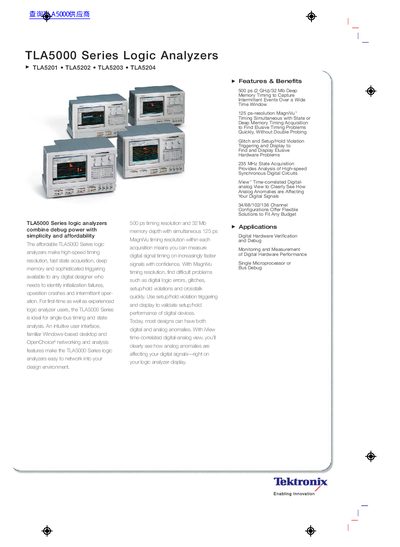

TLA5000 Series logic analyzers have features such as high-speed timing resolution, fast state acquisition, deep memory, and sophisticated triggering. They are suitable for identifying initialization failures, operation crashes, and intermittent operation. The TLA5000 Series logic analyzers are ideal for single-bus timing and state analysis for both first-time and experienced logic analyzer users.
The Tektronix TLA5000 Series logic analyzers provide high-speed timing resolution (up to 125 ps with MagniVu) and deep memory (32 Mb) for identifying initialization failures, crashes, and intermittent operations. The series includes four models: the TLA5201 (34 channels), TLA5202 (68 channels), TLA5203 (102 channels), and TLA5204 (136 channels). These analyzers support simultaneous state acquisition, glitch detection, setup/hold violation triggering, and time-correlated digital-analog viewing.
| Number of Channels (TLA5201) | 34 channels (2 are clock channels) |
|---|---|
| Number of Channels (TLA5204) | 136 channels |
| Maximum State Clock Rate | 235 MHz |
| MagniVu Timing Resolution | 125 ps (8 GHz) |
| Deep Memory Depth | 32 Mb |
| Operating Temperature | +5 °C to +50 °C |
The series offers 34, 68, 102, and 136 channel configurations.
Yes, it includes glitch and setup/hold violation triggering and display to find elusive hardware problems.
