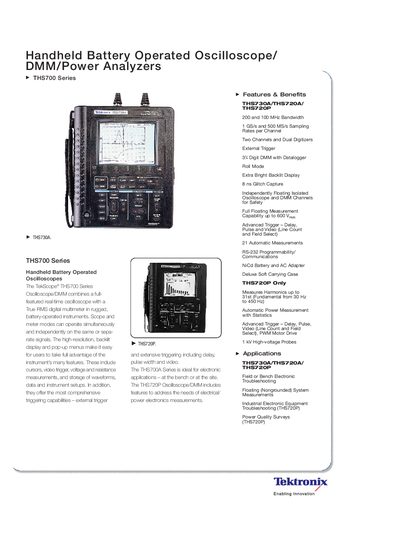

Handheld Battery Operated Oscilloscope/DMM/Power Analyzers THS700 Series
The THS700 Series offers a rugged, battery‑operated instrument that merges a real‑time oscilloscope with a True RMS digital multimeter. Users can operate scope and meter modes simultaneously, with features such as cursors, video trigger, voltage and resistance measurements, and waveform storage. Advanced triggering includes external, delay, pulse‑width, and video modes, while the THS720P adds harmonic analysis and PWM motor‑drive triggering for power‑electronics work.
Key specifications include bandwidth up to 200 MHz (THS730A) or 100 MHz (THS720A/P), sampling rates of 1 GS/s or 500 MS/s per channel, two independent channels, a 3 % accuracy DMM, and a backlit 320 × 240 LCD display. The unit runs on a NiCd rechargeable battery with approximately 2 hours of operation and meets safety standards UL3111‑1, CSA1010.1, EN61010‑1, IEC61010‑1.
| Bandwidth | 200 MHz (THS730A), 100 MHz (THS720A/THS720P) |
|---|---|
| Sample Rate per Channel | 1 GS/s (THS730A), 500 MS/s (THS720A/THS720P) |
| Number of Channels | Two |
| DMM Accuracy | 3 % (Digit DMM with Datalogger) |
| DC Voltage Range (DMM) | 400 mV to 880 V |
| Battery Life | Approx. 2 hours |
| Display Resolution | 320 × 240 pixels |
| Weight | 1.45 kg |
| Safety Standards | UL3111‑1, CSA1010.1, EN61010‑1, IEC61010‑1 |
The THS730A provides a 200 MHz bandwidth.
The THS700 series has two independent channels.
The battery provides approximately 2 hours of operation on a full charge.
