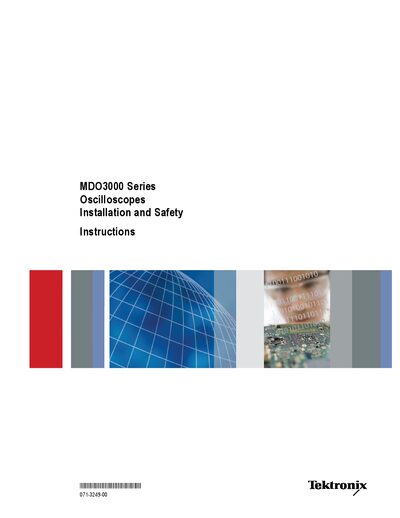

Tektronix MDO3000 Series Oscilloscopes Installation and Safety Instructions

Installation and safety guide for Tektronix MDO3000 Series oscilloscopes, covering setup, power requirements, and safety precautions.

Brand: Tektronix
Category: Other
Document type: Installation Guide
Language: English
Pages: 140
File format: PDF
File size: 5.4 MB
Published: 29 September, 2026
Updated: 29 September, 2026
MD5 checksum: 1E1B3E92178F0528F1261EC0124A9C60
PDF: Tektronix MDO3000 Series Oscilloscopes Installation and Safety Instructions PDF

About this manual

This manual provides the installation procedures and safety information for the Tektronix MDO3000 Series oscilloscopes. It includes important safety warnings, compliance details, and guidelines for proper handling and servicing of the instrument.

The document also lists electrical and environmental ratings, physical specifications, front‑ and rear‑panel connector descriptions, power‑on/off steps, functional checks, and probe‑compensation instructions. Optional accessories and upgrade options are described as well.

What's inside

Important safety information
General safety summary
Operating requirements
Electrical ratings
Physical specifications
Installation procedure
Front‑panel menus, controls, and connectors
Rear‑panel connectors
Power‑on and power‑off procedure
Functional check

Specifications

Maximum analog front‑panel input voltage	300 V RMS, Category II
Operating temperature range	‑10 °C to +55 °C

Frequently asked questions

What are the allowed operating temperature limits?

The device operates safely from –10 °C to +55 °C.
