This product is a high-speed optical communications test instrument that can be used for 10GbE LAN, WAN, FEC, 10G Fibre Channel and 10 Gb/s Telecom Standard and FEC Rates low-noise, high optical sensitivity and broad wavelength conformance testing

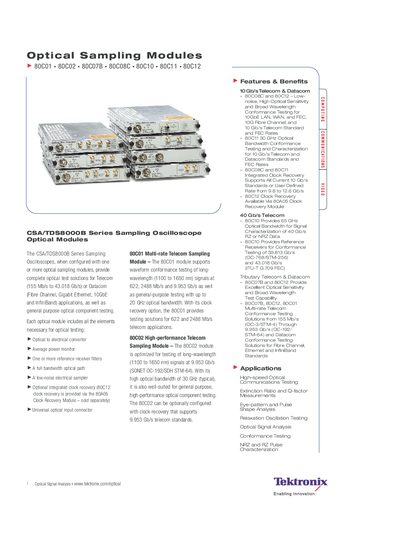

The 80C01‑80C12 optical sampling modules provide complete optical test solutions for telecom (155 Mb/s to 43 Gb/s) and datacom (Fibre Channel, 10 GbE, InfiniBand) applications. Each module includes an optical‑to‑electrical converter, power monitor, reference receiver filters, a full‑bandwidth optical path and low‑noise electrical sampler.
The manual lists module bandwidths, wavelength ranges, connector options, clock‑recovery features and ordering information. Standard FC/PC connectors are supplied, with a variety of adapter options available. Electrical clock‑recovery is offered via the optional 80A05 module.
| Optical bandwidth | 20 GHz (80C01) |
|---|---|
| Sensitivity | -15 dBm |
| Number of channels | 1 |
| Maximum optical input power | 5 mW average; 10 mW peak |
| Electrical clock recovery option | 80A05 module |
All optical sampling modules are shipped with a standard FC/PC optical connector.
Electrical clock recovery is available as an optional 80A05 module that can be added to the optical sampling modules.
