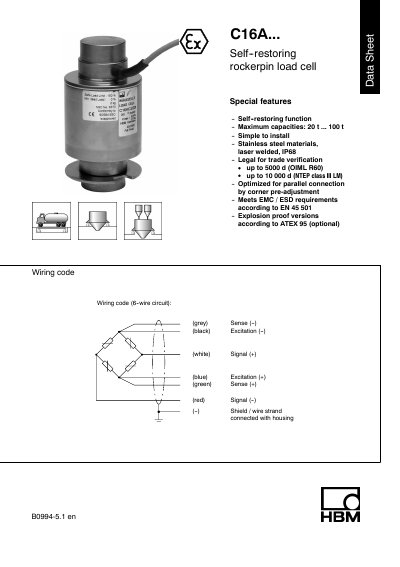

HBM C16A Self-Restoring Rockerpin Load Cell Data Sheet
This document provides technical specifications for the HBM C16A series of self-restoring rockerpin load cells. Key features include stainless steel construction, IP68 protection, and suitability for trade verification up to class III LM (NTEP). The cells are optimized for parallel connection and available in capacities ranging from 20t to 200t.
Read onlineHBM C16A specifications
| Maximum capacities | 20t ... 100 t (200t optional) |
|---|---|
| Accuracy class OIML R60 | D1 (0.0330 %) or C3 (0.0170 %) |
| Protection class | IP68 |
| Material | Stainless steel |
| Input resistance | 700 Ohm |
| Output resistance | 706 Ohm |
| Nominal excitation voltage | 5 V |
| Service temperature range | -30...+70 °C |
Source: HBM C16A Self-Restoring Rockerpin Load Cell Data Sheet
All HBM C16A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum capacity of the C16A load cell?
The standard maximum capacities range from 20t to 100t, with a 200t version available on request.
From: HBM C16A Self-Restoring Rockerpin Load Cell Data Sheet
Is the C16A load cell legal for trade verification?
Yes, it is legal for trade verification up to 5000 d (OIML R60) and up to 10 000 d (NTEP class III LM).
From: HBM C16A Self-Restoring Rockerpin Load Cell Data Sheet
What is the wiring code for the C16A load cell?
The C16A uses a 6‑wire circuit: (grey) Sense (‑), (black) Excitation (‑), (white) Signal (+), (blue) Excitation (+), (green) Sense (+), (red) Signal (‑), and the shield is connected to the housing.
From: HBM C16A../20t ... 100t Self--restoring rockerpin load cell handbook
Which explosion‑proof options are available for the C16A?
Two explosion‑proof versions are offered: EEx ib IIC T4 and EEx d IIC T6.
From: HBM C16A../20t ... 100t Self--restoring rockerpin load cell handbook
