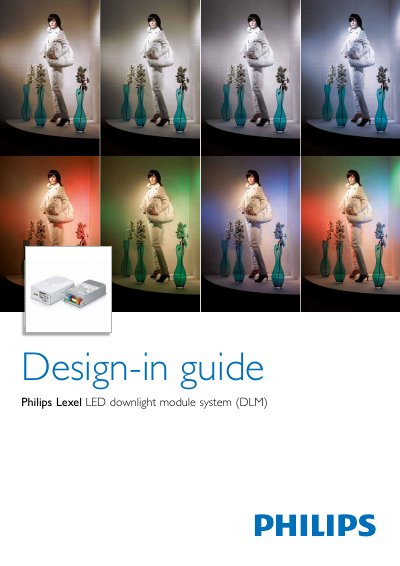

This document provides a design-in guide for the Philips Lexel LED downlight module system, describing the features and characteristics of the product.
The Philips Lexel LED DLM design‑in guide provides an overview of the downlight module system, its components, and key performance characteristics. It describes the LED module, driver, and optional cables, and explains how the system can be integrated into recessed luminaires for applications such as offices, hospitality, retail and entertainment.
The document includes detailed sections on thermal management, wiring diagrams for DMX and DALI, control methods, safety and compliance (IEC/UL, photobiological safety), and mechanical mounting guidelines. Appendices list acronyms, references and visual indexes to aid designers and OEMs in creating compliant, high‑performance lighting products.
| Lumen maintenance | 70 % at 50 000 h |
|---|---|
| Dimming range | 100 % – 0 % |
| Module weight | 465 g |
| Driver weight | 314 g |
| Typical module dimensions | 121.6 × 66.8 × 82.8 mm |
The system is expected to maintain 70 % of its initial lumen output after 50 000 hours of operation.
It can dim continuously from 100 % down to 0 %, with color consistency guaranteed above 10 % dimming.
The LED module weighs 465 g and the driver weighs 314 g.
Both the LED module and driver are rated Class 1, requiring protective earth connection.
