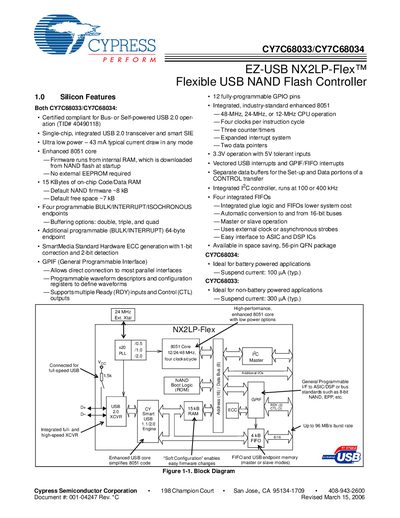

This document introduces the features and characteristics of EZ-USB NX2LP-Flex™ Flexible USB NAND Flash Controller CY7C68033/CY7C68034
The EZ-USB NX2LP-Flex is a flexible USB NAND flash controller that integrates a USB 2.0 transceiver, an enhanced 8051 core, and a programmable GPIF interface. It offers ultra‑low power operation (43 mA typical), 15 KB on‑chip RAM, and up to 12 programmable GPIO pins in a 56‑pin QFN package.
The device supports both high‑speed (480 Mbps) and full‑speed (12 Mbps) USB operation, multiple NAND flash page sizes, and a range of peripheral interfaces via its GPIF and FIFO endpoints. It includes normal operation and manufacturing modes, reset and wake‑up handling, and detailed register maps for developers.
| USB 2.0 compliance | Bus- or Self-powered USB 2.0 operation |
|---|---|
| Typical current draw | 43 mA |
| On‑chip RAM | 15 KB |
| GPIO pins | 12 fully‑programmable |
| CPU clock options | 48 MHz, 24 MHz, or 12 MHz |
| Package type | 56‑pin QFN |
| Suspend current (CY7C68034) | 100 pA (typ.) |
| Suspend current (CY7C68033) | 300 A (typ.) |
| Supported NAND page sizes | 512 B (up to 1 Gb) and 2 KB (up to 8 Gb) |
| USB speed support | High‑speed 480 Mbps, Full‑speed 12 Mbps |
| I2C master speed | 100 kHz / 400 kHz |
| Internal ROM | 1 KB |
| Endpoint RAM size | 3 × 64 B (EP0/1) and 8 × 512 B (EP2,4,6,8) |
It supports high‑speed 480 Mbps and full‑speed 12 Mbps USB operation.
The controller draws about 43 mA typical current in any mode.
The device provides 12 fully‑programmable GPIO pins.
It is offered in a 56‑pin QFN (Quad Flat No‑lead) package.
