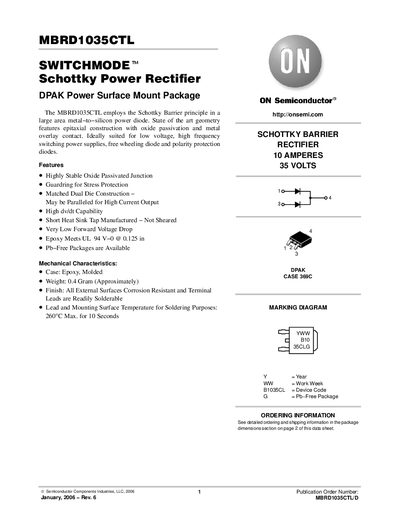

This datasheet provides information about MBRD1035CTL, including features, pins, package, and applications.
The MBRD1035CTL Schottky power rectifier employs a large‑area metal‑to‑silicon junction with oxide passivation and a metal overlay contact. It is suited for low‑voltage, high‑frequency switching power supplies, free‑wheeling diodes and polarity‑protection applications.
Key specifications include a 10 A average forward current, 35 V reverse voltage rating, 0.47 V forward drop at 5 A/25 °C, and a thermal resistance of 3 °C/W (junction‑to‑case). The device is supplied in a DPAK (single gauge) package (CASE 369C) with various ordering options for tape‑and‑reel or rail packaging.
| Forward Voltage at 5 A, 25 °C | 0.47 V |
|---|
The typical forward voltage drop is 0.47 V under those conditions.
