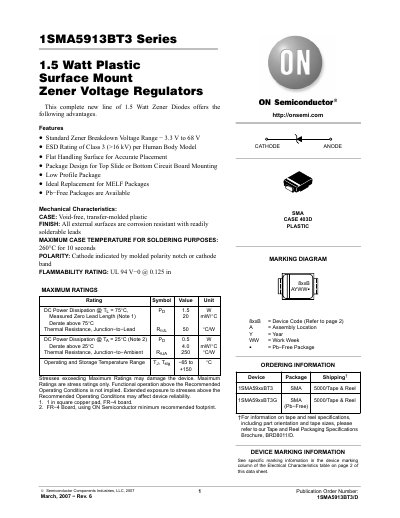

1.5 Watt Plastic Surface Mount Zener Voltage Regulators
The 1SMA5913BT3 series offers 1.5 W plastic surface‑mount Zener diodes with a standard breakdown voltage range of 3.3 V to 68 V, Class 3 ESD rating (>16 kV), flat handling surface, low‑profile package and Pb‑free options. Features include top‑slide or bottom‑circuit‑board mounting and suitability as a replacement for MELF packages.
The datasheet lists electrical characteristics such as maximum power dissipation (1.5 W at 75 °C, 0.5 W at 25 °C), thermal resistance, operating temperature range (‑65 °C to +150 °C), and detailed Zener voltage versus current curves. Mechanical data, package dimensions, ordering codes and contact information are also provided.
| Operating Temperature Range | -65 °C to +150 °C |
|---|---|
| Zener Voltage Range | 3.3 V to 68 V |
| ESD Rating | Class 3 (>16 kV) |
It operates from –65 °C up to +150 °C.
The series covers Zener breakdown voltages from 3.3 V to 68 V.
Yes, a Pb‑free package option (suffix “G”) is available.
