MBRM120L is a surface mount Schottky power rectifier produced by Semiconductor Components Industries, LLC, with low height, small footprint area and low voltage drop, which is widely used in portable and battery powered products

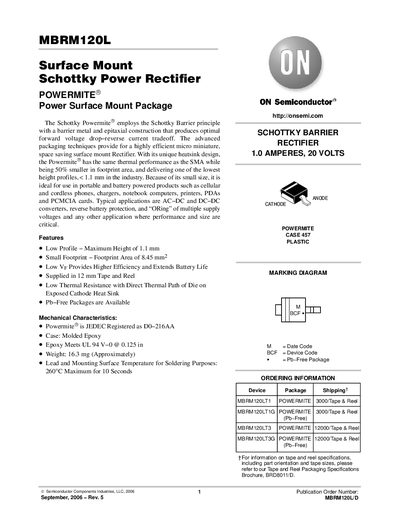

The MBRM120L is a surface‑mount Schottky Power Rectifier offered in the POWERMITE® package. It provides a low forward voltage drop, small footprint (8.45 mm²) and a maximum height of 1.1 mm, making it suitable for portable and battery‑powered devices such as phones, chargers and notebooks.
Key features include low thermal resistance, Pb‑free options, and availability in tape‑and‑reel packaging. The document lists maximum ratings, thermal and electrical characteristics, mechanical dimensions, and ordering information.
| Maximum Forward Current (Average Rectified) | 1.0 A |
|---|---|
| Peak Repetitive Forward Current | 2.0 A |
| Maximum Reverse Voltage | 20 V |
| Thermal Resistance, Junction‑to‑Lead (Anode) | 35 °C/W |
| Maximum Height | 1.1 mm |
| Soldering Temperature (Maximum) | 260 °C for 10 s |
The average rectified forward current is rated at 1.0 A, with a peak repetitive forward current of 2.0 A.
The device is rated for a peak repetitive reverse voltage of 20 V.
The package has a maximum height of 1.1 mm.
The lead and mounting surface may be heated up to 260 °C for a maximum of 10 seconds.
