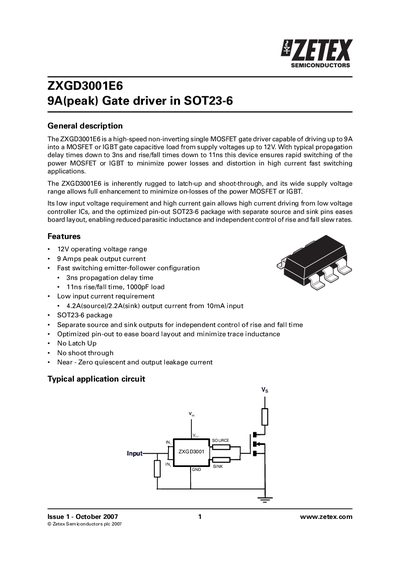

The ZXGD3001E6 is a high-speed non-inverting single MOSFET gate driver capable of driving up to 9A into a MOSFET or IGBT gate capacitive load from supply voltages up to 12V. With typical propagation delay times down to 3ns and rise/fall times down to 11ns this device ensures rapid switching of the power MOSFET or IGBT to minimize power losses and distortion in high current fast switching applications.
The ZXGD3001E6 is a high‑speed non‑inverting single MOSFET gate driver capable of delivering up to 9 A peak current into a MOSFET or IGBT gate from supply voltages up to 12 V. It offers very fast switching with typical propagation delays of 3 ns and rise/fall times of 11 ns into a 1000 pF load, making it suitable for high‑current fast‑switching applications such as synchronous switch‑mode power supplies, motor control circuits, and audio power stages.
Key features include a 12 V operating voltage range, low input current, separate source and sink pins for independent control of rise and fall slew rates, and a compact SOT‑23‑6 package that eases board layout. The device is rugged against latch‑up and shoot‑through and is rated for operation from –55 °C to +150 °C.
| Operating voltage range | 12 V |
|---|---|
| Peak output current | 9 A |
| Propagation delay | 3 ns |
| Rise/fall time (1000 pF load) | 11 ns |
The device can deliver a peak output current of 9 A.
It operates from supply voltages up to 12 V.
Typical propagation delay is 3 ns.
