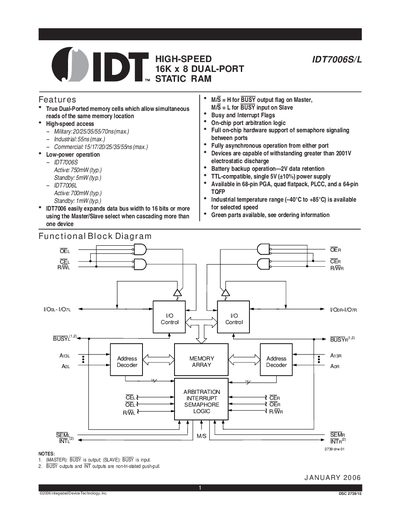

IDT7006S/L is a high-speed 16K x 8 dual-port static RAM with true dual-ported memory cells that allow simultaneous reads of the same memory location. It features high-speed access, low-power operation, and the ability to expand data bus width.
The IDT7006S/L provides 16K × 8 (128 Kbit) dual‑port static RAM with true dual‑ported cells, allowing simultaneous reads of the same location. It offers a range of speed grades from 20 ns to 70 ns, low‑power operation, battery‑backed data retention, and on‑chip semaphore signaling for arbitration.
The device is supplied in 68‑pin PGA, 68‑pin quad flat‑pack, PLCC and 64‑pin TQFP packages, and supports military, industrial and commercial temperature ranges. Detailed electrical characteristics, timing diagrams and ordering information are included for designers.
| Memory capacity | 16K × 8 (128 Kbit) |
|---|---|
| Access speed (military) | 20/25/35/55/70 ns (max) |
| Active power (S version) | 750 mW typ. |
| Standby power (L version) | 1 mW typ. |
| Temperature range (industrial) | -40 °C to +85 °C |
| Package options | 68‑pin PGA, quad flat‑pack, PLCC, 64‑pin TQFP |
| Battery backup voltage | 2 V data retention |
The device is offered in 68‑pin PGA, 68‑pin quad flat‑pack, PLCC and 64‑pin TQFP packages.
The S version consumes about 5 mW standby, while the low‑power L version consumes about 1 mW standby (typical).
It supports industrial temperatures from –40 °C to +85 °C, commercial from 0 °C to +70 °C, and military from –55 °C to +125 °C.
