This is an electromagnetic valve data sheet, including the model, wiring color, terminal, rated voltage, rated current, rated power, rated frequency, working temperature, working pressure, flow, pressure loss, response time, size, weight, etc.

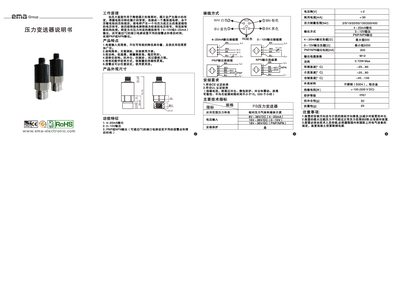

The SMA PB pressure transmitter converts pressure into a proportional voltage or current signal. It uses a Wheatstone bridge and an electronic circuit to produce a linear output that can be configured for 0‑10 V or 4‑20 mA signals.
The device is built with stainless‑steel (S304) housing, IP67 protection, and can operate from –25 °C to 80 °C. It features configurable alarm points, PNP/NPN output options, and a digital calibration method for high accuracy. This manual is written in Chinese.
| Pressure measurement range | 2/5/10/20/50/100/200/1400 bar |
|---|---|
| Power consumption | 0.72 W Max |
| Housing material | Stainless steel (S304) |
| MTBF | ≥15 000 hours |
| Operating temperature range | -25 °C to 80 °C |
The transmitter operates from –25 °C up to 80 °C.
The maximum power consumption is 0.72 W.
