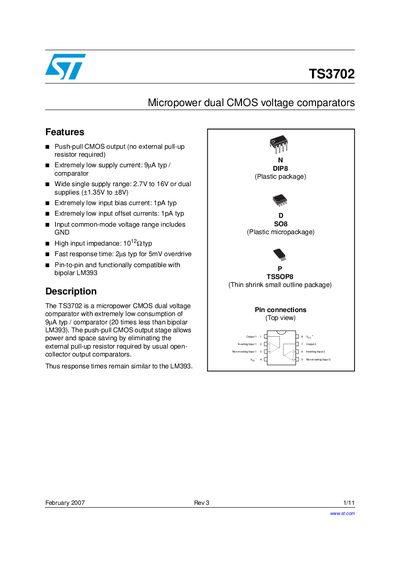

The TS3702 is a micropower CMOS dual voltage comparator with extremely low consumption of 9μA typ / comparator (20 times less than bipolar LM393). The push-pull CMOS output stage allows power and space saving by eliminating the external pull-up resistor required by usual open- collector output comparators. Thus response times remain similar to the LM393.
The TS3702 is a micropower dual CMOS voltage comparator featuring a push‑pull output that eliminates the need for an external pull‑up resistor. It offers extremely low supply current, low input bias current (1 pA typ), and a wide single‑supply range of 2.7 V to 16 V (4 V to 16 V for the TS3702M variant). Typical response time is 2 µs for a 5 mV overdrive.
The device is available in ECOPACK®‑compliant packages such as DIP8, SO8 and TSSOP8, with detailed mechanical dimensions provided. Ordering information, absolute maximum ratings, electrical characteristics, and ESD protection data are included, along with legal and warranty notices.
The TS3702 is offered in ECOPACK®‑compliant DIP8, SO8 and TSSOP8 packages.
