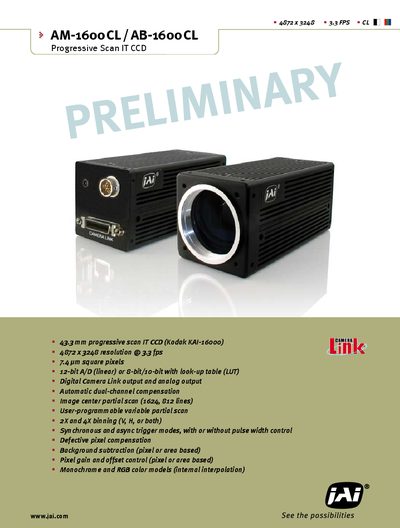

The AM-1600 CL / AB-1600 CL is a 43.3 mm 4872 x 3248 resolution, 3.3fps CCD camera from JAI. The camera features 12-bit A/D (linear) or 8-bit/10-bit with look-up table (LUT) digital Camera Link output and analog output, as well as automatic dual-channel compensation, image center partial scan, user-programmable variable partial scan, 2X and 4X binning (V, H or both), synchronous and async trigger modes, and defective pixel compensation, background subtraction, pixel gain and offset control, monochrome and RGB color models (internal interpolation) and more.
The AM-1600 CL (monochrome) and AB-1600 CL (color) are 43.3 mm progressive‑scan IT CCD cameras using a Kodak KAI‑16000 sensor. They deliver up to 4872 × 3248 pixels at 3.3 fps full‑frame, with partial‑scan modes of 6.3 fps (1624 × 3248) and 125 fps (812 × 3248). The cameras support 42‑bit linear A/D conversion or 8‑/10‑bit conversion with a programmable LUT, and provide both Digital Camera Link and analog video outputs.
Power is supplied at 12 V DC ±10% (typical 800 mA at 25 °C). The unit operates from –10 °C to 50 °C, tolerates 7 g rms vibration (10 Hz‑2000 Hz) and 70 g shock (11 ms half‑sine). Physical dimensions are 55 mm × 55 mm × 120 mm. An on‑screen GUI allows control of shutter, gain, offset, LUT, scanning mode and other parameters, with settings stored in EEPROM for rapid changes. Optional accessories include power supplies, cables, optical filters and F‑mount adapters.
| Sensor type | 43.3 mm progressive scan IT CCD |
|---|---|
| Resolution (full frame) | 4872 × 3248 pixels |
| Pixel size | 7.4 µm square pixels |
| A/D resolution | 42‑bit linear or 8‑/10‑bit with LUT |
| Output interfaces | Digital Camera Link (8‑, 20‑, 22‑bit) and analog 1.0 Vp‑p |
| Full‑frame frame rate | 3.3 fps |
| Partial‑scan (1624 × 3248) frame rate | 6.3 fps |
| Partial‑scan (812 × 3248) frame rate | 125 fps |
| Power requirement | 12 V DC ±10%, 800 mA typical |
| Operating temperature | -10 °C to 50 °C |
| Dimensions (H × W × L) | 55 mm × 55 mm × 120 mm |
| Vibration tolerance | 7 g rms (10 Hz‑2000 Hz) random |
| Shock tolerance | 70 g, 11 ms half‑sine |
It provides both Digital Camera Link and an analog video output.
The camera requires 12 V DC ±10% with a typical current draw of 800 mA at 25 °C.
It operates from –10 °C up to 50 °C.
Optional accessories include a 2 m cable (26CL‑02‑26), power supplies PD‑12UUP and PD‑12UU/12P‑02S, optical filters, IR filter modules, and F‑mount adapters.
