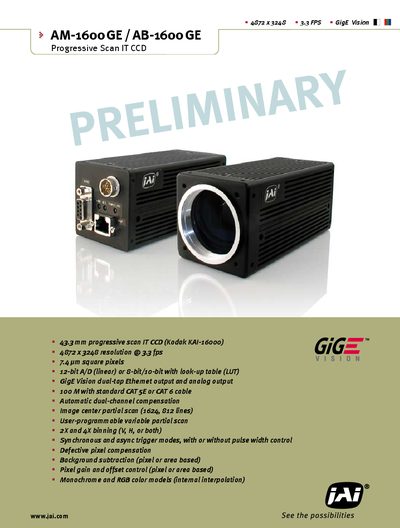

The AM-1600 GE / AB-1600 GE is a 4872 x 3248 resolution @ 3.3 fps progressive scan IT CCD from JAI, it features 7.4 µm square pixels, 12-bit A/D (linear) or 8-bit/10-bit with look-up table (LUT), supports GigE Vision dual-tap Ethernet output and analog output, supports 100 M bandwidth standard CAT 5E or CAT 6 cable, supports automatic dual-channel compensation, supports image center partial scan (1624, 812 lines), supports user-programmable variable partial scan, supports 2X and 4X binning (V, H, or both), supports synchronous and async trigger modes, supports defective pixel compensation, supports background subtraction (pixel or area based), supports pixel gain and offset control (pixel or area based), supports monochrome and RGB color models (internal interpolation).
The AM-1600 GE (monochrome) and AB-1600 GE (color) are 43.3 mm progressive‑scan IT CCD cameras using a Kodak KAI‑16000 sensor. They deliver a full‑frame resolution of 4872 × 3248 pixels at 3.3 fps, with partial‑scan modes up to 115 fps, and support both GigE Vision Ethernet and analog video outputs. The cameras provide 42‑bit linear A/D conversion or 8‑/10‑bit conversion with a programmable LUT, and feature user‑definable partial scans, binning, and various trigger modes.
Physical specifications include a compact 55 mm × 55 mm × 120 mm housing, 12 V DC power (800 mA typical), operating temperature from –10 °C to 50 °C, and resistance to 7 g rms vibration and 70 g shock. The lens mount is M4/0 (F‑mount optional). An extensive SDK with a graphical UI allows control of shutter, gain, A/D reference, LUT, and acquisition modes, and provides C++ classes for image grabbing and I/O configuration.
| Sensor type | 43.3 mm progressive scan IT CCD (Kodak KAI‑16000) |
|---|---|
| Resolution (full frame) | 4872 × 3248 pixels @ 3.3 fps |
| Pixel size | 7.4 µm square pixels |
| A/D conversion | 42‑bit linear or 8‑/10‑bit with LUT |
| Output interfaces | GigE Vision dual‑tap Ethernet and analog video |
| Pixel clock | 30.00 MHz |
| Signal‑to‑noise ratio | 56 dB |
| Power consumption | 12 V DC ±10 %, 800 mA typical |
| Operating temperature | -10 °C to 50 °C |
| Dimensions (H × W × L) | 55 mm × 55 mm × 120 mm |
The camera provides a full‑frame resolution of 4872 × 3248 pixels at 3.3 fps.
Both GigE Vision dual‑tap Ethernet and analog video outputs are provided.
They operate from a 12 V DC supply with a typical current draw of 800 mA (±10 %).
The standard mount is M4/0, with an optional F‑mount adapter.
