This document describes the features and characteristics of JAI's C3 Compact series, including resolution range, pixel size, scanning method, frame rate, exposure time, interface type, etc.

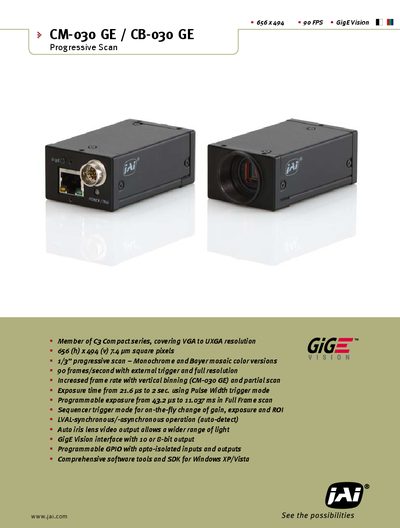

The JAI CM-030 GE (monochrome) and CB-030 GE (color) are 1/3" progressive‑scan CCD cameras offering up to 90.5 fps at full resolution (656 × 494). They support GigE Vision with 8‑ or 10‑bit output, programmable GPIO, and multiple trigger modes for flexible integration.
Key features include programmable exposure (43.2 µs – 11.037 ms), auto‑iris lens video output, and a compact form factor (29 × 44 × 75 mm, 125 g). The cameras operate from –5 °C to +45 °C and meet CE, FCC, and RoHS standards.
| Sensor type | 1/3" progressive scan CCD |
|---|---|
| Pixel clock | 40 MHz |
| Full‑frame rate | 90.5 fps |
| Active area | 4.9 mm × 3.7 mm |
| Pixel size | 7.4 µm × 7.4 µm |
| Resolution | 656 × 494 pixels (full) |
| Video output | GigE Vision, 8‑bit or 10‑bit |
| Power consumption | 12 V DC, 3.6 W |
| Operating temperature | -5 °C to +45 °C |
| Dimensions (H×W×L) | 29 mm × 44 mm × 75 mm |
| Weight | 125 g |
The camera can capture up to 90.5 frames per second at full resolution.
It uses a GigE Vision interface with an RJ‑45 connector, supporting 8‑ or 10‑bit output.
The camera operates from –5 °C up to +45 °C.
It requires a 12 V DC supply and consumes about 3.6 W.
