CM-040 GE / CB-040 GE is a 1 / 2'' scanning camera from JAI, with a maximum resolution of 776x582, supports GigE Vision interface, and can use 8-bit or 10-bit output, supports auto focus, auto exposure, and auto white balance.

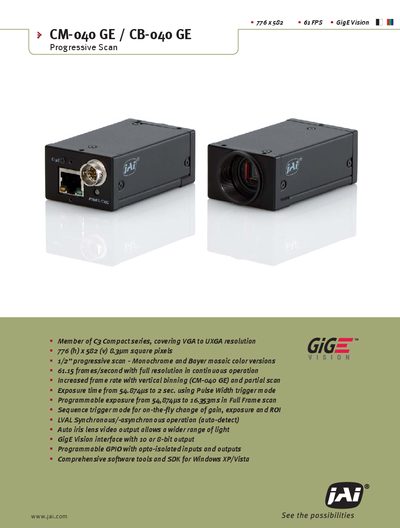

This datasheet describes the JAI CM-o40 GE monochrome and CB-o40 GE color progressive‑scan cameras. It lists sensor details, pixel clock, frame rates, read‑out modes, ROI options, and video output capabilities.
The document also covers electrical interfaces (GigE Vision, RJ‑45), GPIO configuration, power requirements, operating temperature, humidity range, and regulatory compliance for industrial machine‑vision applications.
| Active Pixels | 776 (h) x 582 (v) |
|---|---|
| Pixel Clock | 33.75 MHz |
| Full‑frame Frame Rate | 61.15 fps |
| Sensitivity (Color) | 1.3 Lux (max gain, shutter off, 50% video) |
| Video Output | GigE Vision, 8‑bit or 10‑bit |
| Power Consumption | 12 V DC ±10 %, 3.6 W |
| Operating Temperature | ‑25 °C to +45 °C |
| Humidity (operation) | 20 % – 80 % non‑condensing |
The camera uses a GigE Vision interface with an RJ‑45 connector.
The camera requires 12 V DC with ±10 % tolerance and consumes about 3.6 W.
