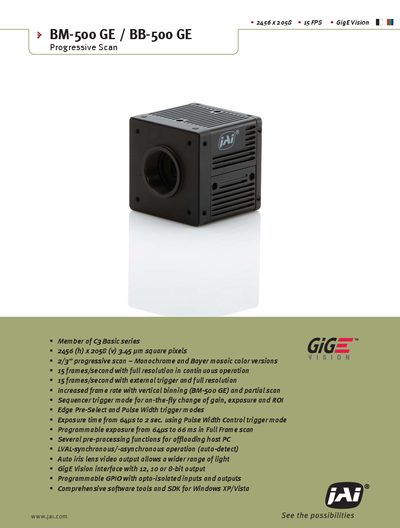

BM-500 GE/BB-500 GE 2456x2058 15 FPS GigE Vision is a 2/3” 15 frames/second full resolution scanner, using 2456 (h) x 2058 (v) 3.45 μm pixels, with multiple pre-processing functions to offload the host PC.
The BM-500 GE (monochrome) and BB-500 GE (color) are 2/3" progressive scan CCD cameras designed for high‑speed machine vision applications. They support GigE Vision with 8‑, 10‑ or 12‑bit output and offer a range of read‑out modes and ROI options.
Key features include a 60 MHz pixel clock, up to 15 fps at full resolution, configurable gain, multiple trigger modes, and robust environmental ratings such as -5 °C to +45 °C operating temperature, 10 G vibration and 70 G shock resistance.
| Sensor type | 2/3" progressive scan CCD |
|---|---|
| Pixel clock | 60 MHz |
| Full‑frame frame rate | 15 fps |
| Active area | 8.45 mm × 7.07 mm |
| Active pixels | 2456 × 2058 |
| Sensitivity (BM‑500 GE) | 0.34 Lux |
| Sensitivity (BB‑500 GE) | 1.0 Lux |
| Signal‑to‑noise ratio | >50 dB |
| Video output | GigE Vision, 8‑bit/10‑bit/12‑bit |
| Gain range | -3 dB to 12 dB |
| Power consumption | 12 V DC ±10 %, 5.5 W |
| Operating temperature | -5 °C to +45 °C |
| Vibration rating | 10 G (20 Hz‑200 Hz) |
| Shock rating | 70 G |
| Dimensions (H×W×L) | 55 mm × 55 mm × 55 mm |
| Weight | 200 g |
It uses a 2/3" progressive scan CCD sensor.
The camera can capture up to 15 frames per second at full resolution.
It requires 12 V DC with a tolerance of ±10 % and consumes about 5.5 W.
The operating temperature range is from –5 °C to +45 °C.
