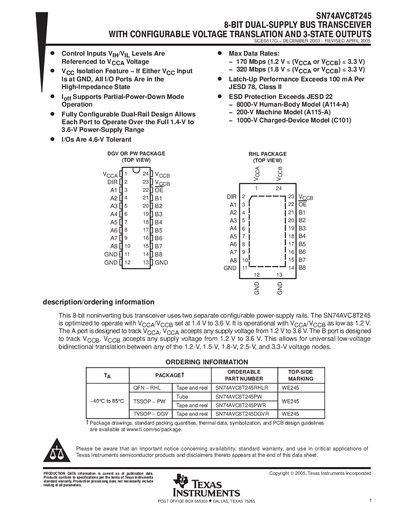

This datasheet provides detailed information about the features of the SN74AVC8T245, including control input levels, VCC isolation, Ioff support, dual rail design, I/O port tolerance range, maximum data rate, latch-up performance and ESD protection.
The SN74AVC8T245 is an 8‑bit non‑inverting bus transceiver that operates with dual configurable supply rails (VOCA and VOCB) from 1.2 V up to 3.6 V, allowing bidirectional voltage translation between common logic levels. Control pins DIR and OE are supplied by VOCA, and the device supports partial‑power‑down mode and high‑impedance isolation when required.
The datasheet provides absolute maximum ratings, recommended operating conditions, electrical and switching characteristics, mechanical dimensions for several package types (RHL, PW, DGV, TSSOP), and an important notice covering warranty and usage terms.
