This document describes the features and characteristics of the SLLS397A model, including support for multiple input clocks, large capacity FIFO buffers, programmable flow control, and interrupt generation.

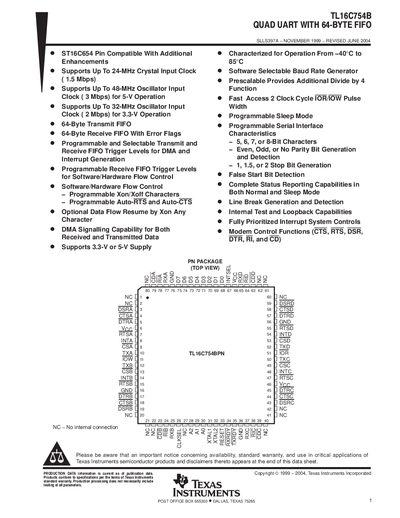

The TL16C754B is a quad universal asynchronous receiver/transmitter (UART) featuring 64‑byte transmit and receive FIFOs, automatic hardware/software flow control, and data rates up to 3 Mbps. It offers programmable baud‑rate generation, selectable parity, stop bits, and supports both 3.3 V and 5 V supplies.
The device is pin‑compatible with TL16C554 and ST16C654, available in 80‑pin TQFP and 68‑pin PLCC packages. Detailed functional blocks, terminal functions, and flow‑control options (auto‑CTS/RTS, Xon/Xoff) are described, along with package dimensions and warranty notices.
| Transmit FIFO size | 64 bytes |
|---|---|
| Receive FIFO size | 64 bytes |
| Maximum data rate | 3 Mbps |
| Supported crystal input clock | up to 24 MHz |
| Supply voltage | 3.3 V or 5 V |
| Package types | 80‑pin TQFP, 68‑pin PLCC |
The TL16C754B supports data rates up to 3 Mbps.
The device can operate from either a 3.3 V or a 5 V supply.
It is offered in 80‑pin TQFP and 68‑pin PLCC packages.
