The STB30NF10 is a N-channel 100V - 0.038 Ω - 35A TO-220/TO-220FP/D2PAK low gate charge STripFET™ II power MOSFET with typical RDS(on) = 0.038 Ω, exceptional dv/dt capability, 100% avalanche tested and application oriented characterization. It is suitable for high efficiency DC-DC converters and UPS and motor control applications.

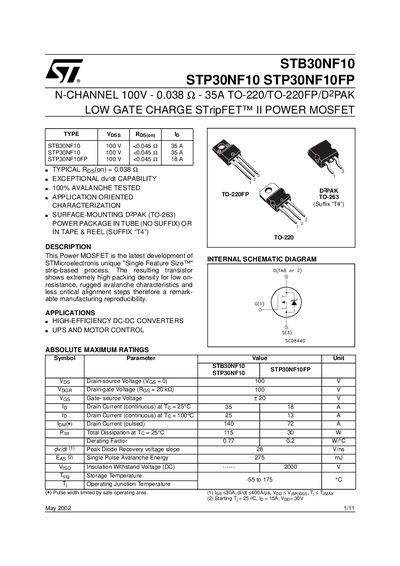

The document provides detailed specifications for three N‑channel power MOSFETs – STB30NF10, STP30NF10 and STP30NF10FP – all rated for 100 V operation. It describes the devices' electrical performance, including drain‑source voltage, on‑resistance, gate charge and switching times, as well as thermal characteristics and mechanical dimensions for various package types.
Package options covered include TO‑220, TO‑220FP, D2PAK (TO‑263) and tape‑and‑reel versions. The datasheet also presents safe operating area curves, thermal impedance data, and footprint dimensions for both the TO‑220 and D2PAK packages, enabling designers to select the appropriate part for high‑efficiency DC‑DC converters, UPS and motor‑control applications.
| Continuous Drain Current (ID) – STP30NF10FP | 18 A |
|---|
