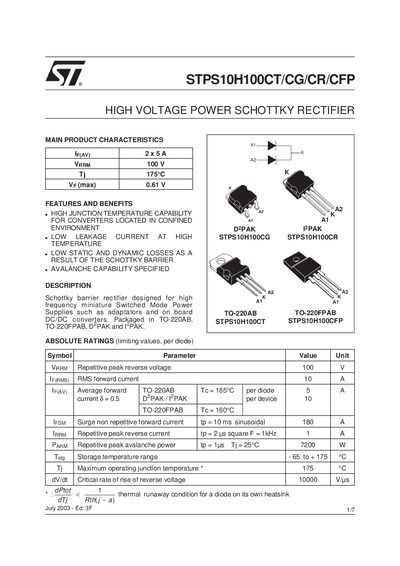

STPS10H100CT/CG/CR/CFP is a high voltage power Schottky rectifier from ST with high junction temperature capability, low leakage current, low static and dynamic losses and avalanche capability.
This datasheet describes the STPS10H100 series Schottky barrier rectifiers designed for high‑frequency miniature switched‑mode power supplies such as adaptors and on‑board DC/DC converters. It lists the electrical characteristics, thermal performance, and mechanical dimensions for the four package variants (TO‑220AB, TO‑220FPAB, D2PAK, I2PAK).
Key specifications include a 100 V repetitive peak reverse voltage, 10 A average forward current, a maximum forward voltage drop of 0.61 V, and a junction temperature rating of 175 °C. Thermal resistance values and package mechanical data are provided for each package type, along with ordering information.
| Repetitive peak reverse voltage (VRRM) | 100 V |
|---|---|
| Maximum forward voltage drop (VFmax) | 0.61 V |
| Maximum junction temperature (Tj) | 175 °C |
| Reverse leakage current at 25 °C | 3.5 µA |
| Forward voltage drop at 5 A, 25 °C | 0.73 V |
The device is rated for a repetitive peak reverse voltage of 100 V.
The series is offered in TO‑220AB, TO‑220FPAB, D2PAK, and I2PAK packages.
The maximum operating junction temperature is 175 °C.
