This datasheet provides a detailed introduction to the function and features of the M74HC4017, including working voltage range, power consumption, noise immunity, output impedance, and propagation delay

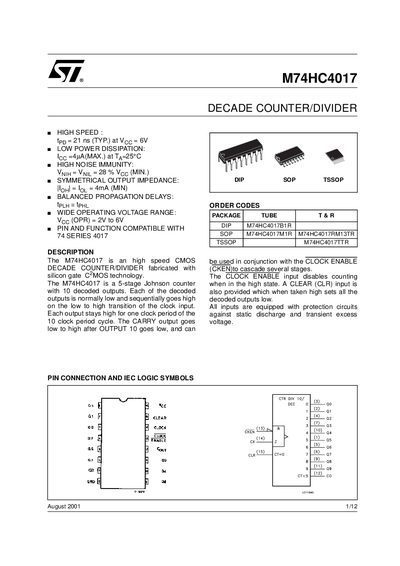

This document describes the M74HC4017, a high‑speed CMOS decade counter/divider with ten decoded outputs and a carry output. It includes a description of the device operation, pin assignments, truth table, and logic diagram.
The datasheet contains detailed electrical specifications such as supply voltage range, propagation delays, power dissipation, and temperature limits, as well as mechanical data for the TSSOP‑16 package and test circuit examples.
| Supply voltage (recommended) | 2 V to 6 V |
|---|---|
| Supply voltage (absolute max) | -0.5 V to +7 V |
| Power dissipation | 500 mW (at 65 °C) |
| Operating temperature range | -55 °C to 125 °C |
The device is recommended to operate with a supply voltage between 2 V and 6 V.
The M74HC4017 provides ten decoded outputs.
The maximum power dissipation is 500 mW (derated to 300 mW at 85 °C).
