The NL37WZ16 is a high performance buffer with inputs operating from a 1.65 to 5.5 V supply. The NL37WZ16 can be used as a line receiver which will receive slow input signals.
The NL37WZ16 is a high‑performance triple buffer that can be used as a line receiver for slow input signals. It operates from a 1.65 V to 5.5 V supply, offers LVTTL and LVCMOS compatibility, and provides a balanced 24 mA output sink/source while consuming almost no static power.

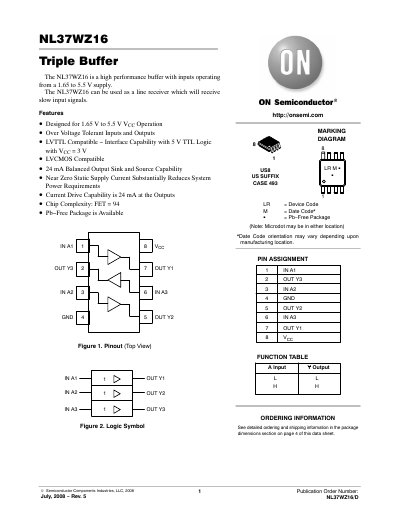

The datasheet lists detailed electrical characteristics, maximum ratings, recommended operating conditions, and package information (US‑8 tape‑and‑reel). Ordering information, pinout diagrams, and mechanical dimensions are also provided for design and procurement.
| Supply voltage range | 1.65 V to 5.5 V |
|---|---|
| Output drive capability | 24 mA balanced sink/source |
| Static supply current | Near zero |
The device is designed for operation from 1.65 V to 5.5 V.
It can source or sink up to 24 mA with a balanced output.
