The TS393 is a micropower CMOS dual voltage comparator with extremely low consumption of 9µA typ / comparator (20 times less than bipolar LM339).
The TS393 is a micropower dual CMOS voltage comparator offering extremely low supply current, low input bias and offset currents, and a wide single‑supply voltage range of 2.7 V to 16 V. It is pin‑to‑pin compatible with the bipolar LM393 and is available in several ECOPACK® packages.

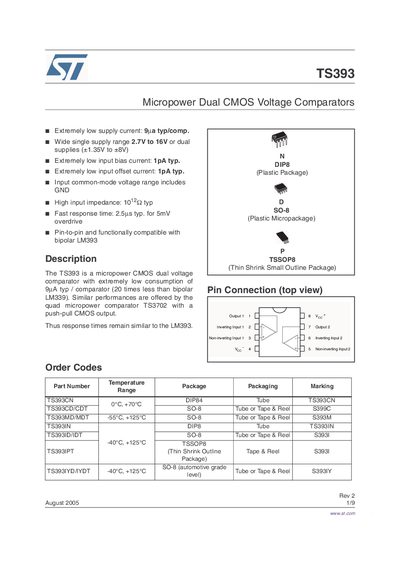

The document lists absolute maximum ratings, typical electrical characteristics, mechanical dimensions for DIP8, SO‑8 and TSSOP8 packages, and includes typical application schematics. Revision history and ordering information are also provided.
| Supply voltage range (single) | 2.7 V to 16 V |
|---|---|
| Supply voltage range (dual) | +1.35 V to +8 V |
| Typical supply current | 91 µA |
| Input bias current | 1 pA typ. |
| Input offset current | 1 pA typ. |
| Input common‑mode voltage range | includes GND |
| High input impedance | 10^12 Ω typ. |
| Response time (low to high) | 2.5 µs typ. |
| Package options | DIP8, SO‑8, TSSOP8 |
| Pin‑to‑pin compatibility | LM393 |
The TS393 operates from a single supply of 2.7 V to 16 V, or from dual supplies of +1.35 V to +8 V.
Typical supply current is 91 µA per comparator.
The TS393 is offered in DIP8, SO‑8, and TSSOP8 ECOPACK® packages.
Yes, it is pin‑to‑pin and functionally compatible with the bipolar LM393.
