ADS8343 is a 16-bit, 4-channel serial output sampling analog-to-digital converter produced by Texas Instruments. It has bipolar input range, single supply, 4-channel single-ended or 2-channel differential input, up to 100kHz conversion rate, 86dB SINAD and SSOP-16 package.
The ADS8343 is a 4‑channel, 16‑bit sampling analog‑to‑digital converter with a synchronous serial interface. It operates from a single supply of 2.7 V to 5 V and provides up to 100 kHz conversion rate, making it suitable for battery‑operated systems, data‑loggers and test equipment.

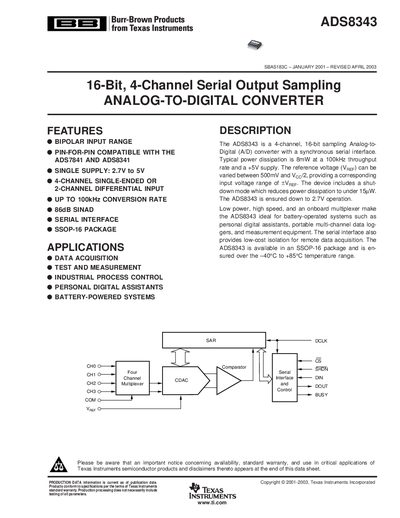

The document includes features, package and ordering information, pin descriptions, electrical characteristics, mechanical data, and an important notice about warranty and product availability.
| Resolution | 16 bits |
|---|---|
| Supply Voltage Range | 2.7 V to 5 V |
| Maximum Conversion Rate | 100 kHz |
| Power Dissipation | 8 mW (typical at 100 kHz, 5 V) |
| Package | SSOP‑16 |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum Junction Temperature | +150 °C |
The device operates from a single supply voltage between 2.7 V and 5 V.
The ADS8343 can sample at up to 100 kHz conversion rate.
Typical power dissipation is about 8 mW at a 100 kHz throughput rate.
