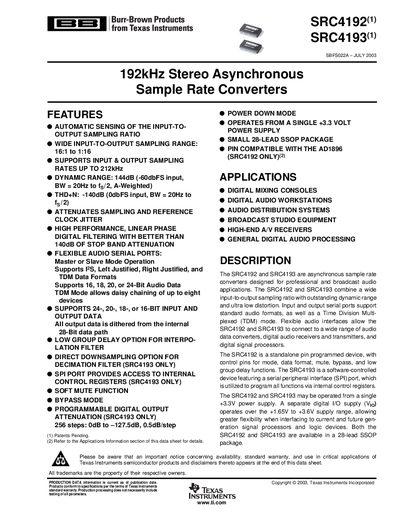

SRC4192 and SRC4193 are asynchronous sample rate converters designed for professional and broadcast audio applications. They combine a wide input-to-output sampling ratio with outstanding dynamic range and ultra low distortion. Input and output serial ports support standard audio formats as well as a Time Division Multiplexed (TDM) mode. Flexible audio interfaces allow SRC4192 and SRC4193 to connect to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors. SRC4192 is a standalone pin programmed device, with control pins for mode, data format, mute, bypass, and low group delay functions. SRC4193 is a software-controlled device featuring a serial peripheral interface (SPI) port, which is utilized to program all functions via internal control registers. SRC4192 and SRC4193 may be operated from a single +3.3V power supply. A separate digital I/O supply (VIO) operates over the +1.65V to +3.6V supply range, allowing greater flexibility when interfacing to current and future generation signal processors and logic devices. Both the SRC4192 and SRC4193 are available in a 28-lead SSOP package.
The SRC4192 and SRC4193 are asynchronous sample‑rate converters designed for professional and broadcast audio applications. They support input and output sampling rates up to 212 kHz, a dynamic range of 144 dB, and THD+N of –140 dB. Both devices operate from a single +3.3 V supply and are available in a 28‑lead SSOP package.
Key features include automatic input‑to‑output ratio sensing, flexible audio serial ports (master/slave, I²S, left‑justified, right‑justified, TDM), programmable digital attenuation, low‑group‑delay and direct down‑sampling options (SRC4193 only), and an SPI port for full register control (SRC4193 only).
| Maximum Input Sampling Frequency | 212 kHz |
|---|---|
| Maximum Output Sampling Frequency | 212 kHz |
| Dynamic Range | 144 dB |
| Package Type | 28‑lead SSOP |
Both devices support input sampling rates up to 212 kHz.
The converters provide a dynamic range of 144 dB.
Both are available in a 28‑lead SSOP package.
