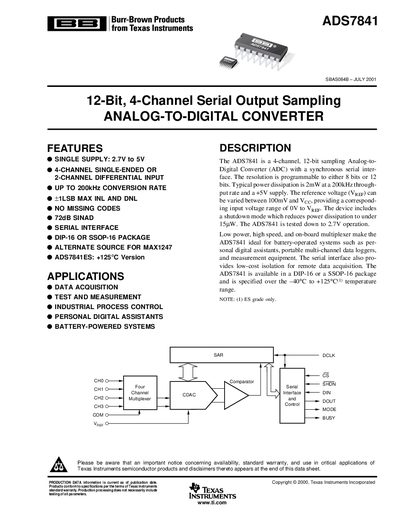

The document describes the features and characteristics of a 12-bit, 4-channel serial output sampling analog-to-digital converter.
The ADS7841 from Texas Instruments is a 4‑channel, 12‑bit sampling ADC with a synchronous serial interface. It operates from a single supply of 2.7 V to 5 V and offers both single‑ended and differential input configurations. Typical power dissipation is 2 mW at 200 kHz throughput, and a shutdown mode reduces consumption to under 15 µW.
The device is offered in DIP‑16 or SSOP‑16 packages and is specified for temperatures from –40 °C to +125 °C. Detailed electrical characteristics, pin configurations, and ordering information are provided in the datasheet.
| Supply voltage | 2.7 V to 5 V |
|---|---|
| Number of channels | 4 (single‑ended) or 2 (differential) |
| Resolution | 12 bits (programmable to 8 bits) |
| Maximum conversion rate | 200 kHz (5 V supply) / 125 kHz (2.7 V supply) |
| Typical power dissipation | 2 mW at 200 kHz, 5 V |
| Package options | DIP‑16 or SSOP‑16 |
| Operating temperature range | –40 °C to +125 °C |
The ADS7841 operates from a single supply of 2.7 V to 5 V.
It provides four single‑ended channels or two differential channels.
The device can convert up to 200 kHz when powered at 5 V (125 kHz at 2.7 V).
It is available in DIP‑16 and SSOP‑16 packages.
