MPD/MPDA Vishay Thin Film SOT-143 Resistor Network products provide ±2 ppm/°C tracking and a ratio tolerance as tight as ±0.05 %, small size, and exceptional stability for all surface mount applications
The MPD/MPDA SOT‑143 resistor network series from Vishay Thin Film provides tight ratio tolerances (as low as ±0.05 %) and excellent temperature tracking (±2 ppm/°C). The standard SOT‑143 package offers a compact footprint for surface‑mount applications, with both lead‑free and RoHS‑compliant options available.

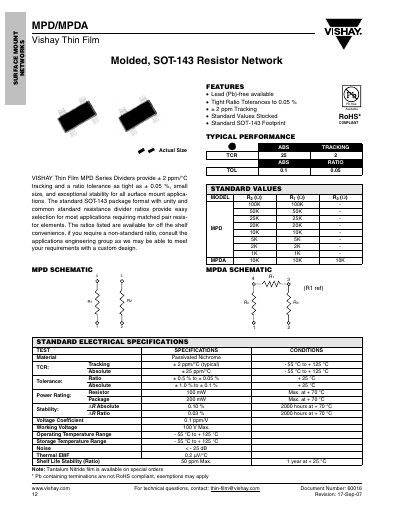

The document lists electrical and mechanical specifications, typical performance curves, dimensional drawings, and the new global part‑numbering scheme. It also includes packaging options and a legal disclaimer regarding product use.
| Tracking Temperature Coefficient (TCR) | ± 2 ppm/°C (typical) |
|---|---|
| Resistance Ratio Tolerance | ± 0.05 % |
| Resistor Power Rating | 100 mW max at +70 °C |
| Package Power Rating | 200 mW max at +70 °C |
| Operating Temperature Range | -55 °C to +125 °C |
The series uses the standard SOT‑143 package format.
Ratio tolerances range from ±0.05 % up to ±0.5 %.
