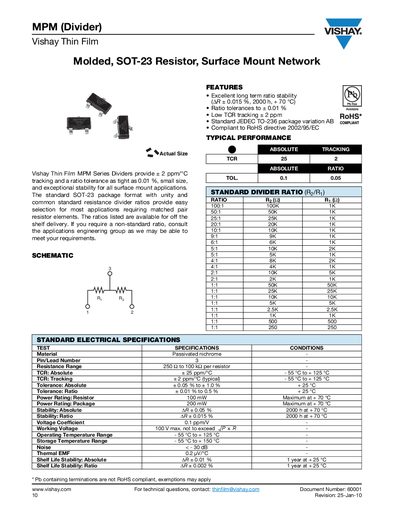

This document is the product manual for the MPM series divider, which contains product features, performance parameters, application scenarios and other information.
The MPM series offers molded SOT‑23 resistor networks with tightly controlled ratio tolerances as low as 0.01 % and excellent long‑term stability. Standard divider ratios are available off‑the‑shelf, and custom ratios can be requested from Vishay’s applications engineering team.
Key specifications include a TCR tracking of +2 ppm/°C, power ratings of 100 mW (resistor) and 200 mW (package) at +70 °C, and an operating temperature range of –55 °C to +125 °C. The series complies with RoHS and is supplied in bulk, tape‑and‑reel, or wafer formats.
| Ratio tolerance | + 0.01 % |
|---|---|
| TCR tracking | + 2 ppm/°C |
| Resistor power rating | 100 mW @ +70 °C |
| Package power rating | 200 mW @ +70 °C |
| Operating temperature range | -55 °C to +125 °C |
| Resistance range | 250 Ω to 100 kΩ per resistor |
| Voltage coefficient | 0.1 ppm/V |
| Absolute stability (AR) | +0.05 % after 2000 h @ +70 °C |
| Ratio stability (AR) | +0.015 % after 2000 h @ +70 °C |
The MPM series provides a low TCR tracking of +2 ppm/°C.
Ratio tolerances as tight as +0.01 % are available.
Each resistor can dissipate up to 100 mW at +70 °C.
It operates from –55 °C to +125 °C.
