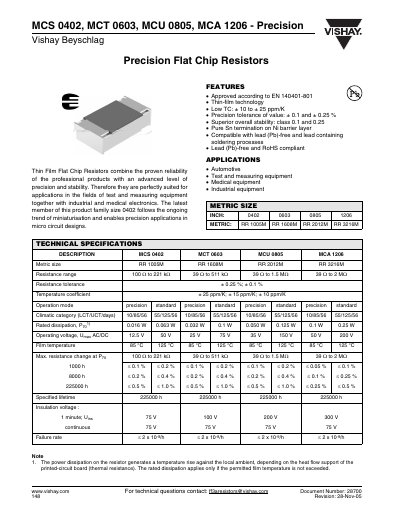

MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Precision Vishay Beyschlag are thin-film technology precision resistors. They feature low temperature coefficient, high precision and high stability, and are suitable for applications in automotive, test and measuring equipment, medical equipment and industrial equipment.
Vishay Beyschlag’s precision flat‑chip resistors are thin‑film components designed for automotive, test and measuring, medical, and industrial equipment. They offer low temperature coefficients and high stability, making them suitable for high‑precision micro‑circuit designs.
Key characteristics include resistance ranges from 100 Ω to 2 M Ω, tolerances of ±0.1 % or ±0.25 %, temperature coefficients as low as ±10 ppm/K, and power dissipation up to 0.25 W depending on size. The parts meet EN 140401‑801, RoHS, and other environmental directives and are supplied in various reel and tape formats.
| Resistance range | 100 Ω to 221 kΩ (0402), 39 Ω to 2 MΩ (other sizes) |
|---|---|
| Resistance tolerance | ±0.25 % or ±0.1 % |
| Temperature coefficient (TC) | ±10 to ±25 ppm/K |
| Operating voltage (U max) | 12.5 V (0402) to 200 V (1206) |
| Climatic category | LCT/UCT/days 10/85/56 |
| Insulation voltage (1 min) | 75 V (0402) to 300 V (1206) |
| Failure rate | ≤ 2 × 10⁻⁹ /h |
| Specified lifetime | 225 000 h |
The resistors are available with tolerances of ±0.25 % or ±0.1 % depending on the part.
The MCA 1206 type has a temperature coefficient of ±25 ppm/K.
They are rated for climatic category LCT/UCT/days 10/85/56.
