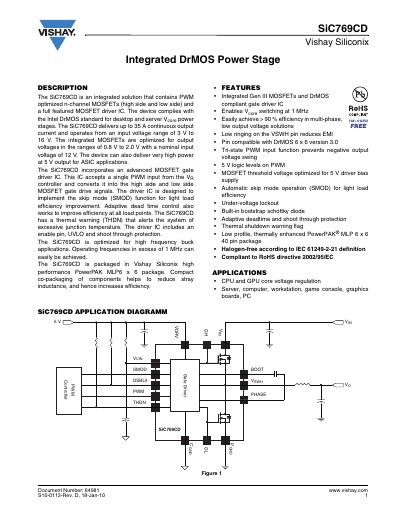

The SiC769CD is an integrated DrMOS power stage from Vishay Siliconix. It integrates PWM-optimized N-channel MOSFETs (high side and low side) and a full-featured MOSFET driver IC. The device complies with the Intel DrMOS standard for desktop and server Vcore power stages. The SiC769CD delivers up to 35 A continuous output current and operates from a 3 V to 16 V input voltage range. The integrated MOSFETs are optimized for output voltages in the ranges of 0.8 V to 2.0 V with a nominal input voltage of 12 V. The device can also deliver very high power at 5 V output for ASIC applications. The SiC769CD incorporates an advanced MOSFET gate driver IC. This IC accepts a single PWM input from the VR controller and converts it into the high side and low side MOSFET gate drive signals. The driver IC is designed to implement the skip mode (SMOD) function for light load efficiency improvement. Adaptive dead time control also works to improve efficiency at all load points. The SiC769CD has a thermal warning (THDN) that alerts the system of excessive junction temperature. The driver IC includes an enable pin, UVLO and shoot through protection. The SiC769CD is optimized for high frequency buck applications. Operating frequencies in excess of 1 MHz can easily be achieved. The SiC769CD is packaged in Vishay Siliconix high performance PowerPAK MLP6 x 6 package. Compact co-packaging of components helps to shorten design cycle and reduce total cost.
The SiC769CD is an integrated DrMOS power stage that combines optimized n‑channel MOSFETs (high‑side and low‑side) with a full‑featured MOSFET driver IC. It complies with the Intel DrMOS standard and is intended for desktop and server V‑core power modules, supporting input voltages from 3 V to 16 V and delivering up to 35 A continuous output current.
The document provides electrical specifications, timing parameters, pin‑out diagrams, package dimensions, and recommended operating conditions. It also describes functional features such as skip‑mode operation, adaptive dead‑time, thermal shutdown warning, and under‑voltage lockout.
| Input voltage (recommended) | 3.0 V – 16 V |
|---|---|
| Maximum continuous output current | 35 A |
| Thermal resistance (junction‑to‑top) | 15 °C/W |
| Maximum power dissipation @ 25 °C PCB | 25 W |
| Thermal shutdown flag set temperature | 150 °C |
| Package | PowerPAK MLP6 × 6 40‑pin |
The device can deliver up to 35 A continuous output current.
It operates from an input voltage of 3 V to 16 V.
It is supplied in a Vishay Siliconix PowerPAK MLP6 × 6 40‑pin package.
The thermal shutdown flag is set when the junction temperature reaches 150 °C.
