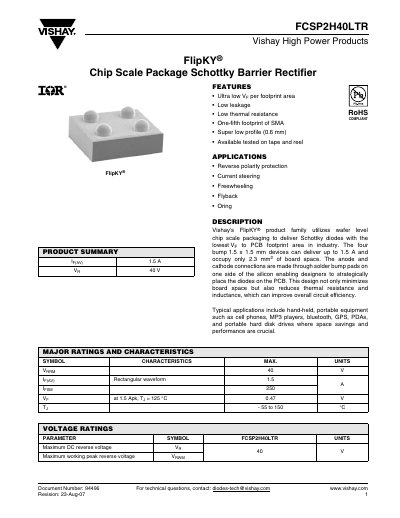

This document introduces the features and characteristics of Vishay's FlipKY® chip scale package Schottky Barrier Rectifier FCSP2H40LTR, including ultra low VF, low leakage, low thermal resistance, super low profile, etc. The product is suitable for applications such as reverse polarity protection, current steering, freewheeling, flyback, Oring, etc.
The FlipKY® FCSP2H40LTR Schottky barrier rectifier uses wafer‑level chip‑scale packaging to provide a very low forward voltage per footprint area, low leakage, and low thermal resistance. Its 0.6 mm profile and 1.5 A current rating make it suitable for space‑constrained portable devices such as phones, MP3 players, Bluetooth modules, GPS units, PDAs, and portable hard‑disk drives.
Key specifications include a maximum reverse voltage of 40 V, typical forward voltage drop of 0.52 V at 1.5 A (25 °C), reverse leakage currents in the sub‑µA range, and a junction capacitance of about 160 pF at 5 V. The device is RoHS compliant and available in tape‑and‑reel packaging.
| Maximum reverse voltage (VRRM) | 40 V |
|---|
It can handle a maximum reverse voltage of 40 V.
Yes, the device is listed as RoHS compliant.
