The FlipKY® Chip Scale Package Schottky Barrier Rectifier FCSP240LTR is a high performance Schottky diode. The diode has ultra low VF, low leakage, low thermal resistance and can be applied to various electronic devices.
The FCSP240LTR is a FlipKY® chip‑scale package Schottky barrier rectifier offering ultra‑low footprint, low leakage, low thermal resistance and a super low profile of 0.6 mm. It is available in tape and reel form and is RoHS‑compliant. Typical applications include reverse‑polarity protection, current steering, free‑wheeling, flyback and ORing, especially in handheld devices such as cell phones, MP3 players and portable hard drives.

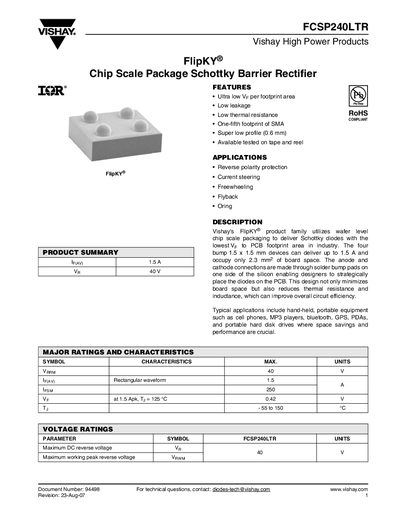

The datasheet lists absolute maximum ratings (40 V reverse voltage, 1.5 A average forward current), detailed electrical characteristics (forward voltage drop, leakage current, junction capacitance), and thermal‑mechanical specifications (junction‑to‑ambient resistance, temperature range, package dimensions). Part marking, tape‑and‑reel information and legal disclaimer are also provided.
| Maximum forward current | 1.5 A |
|---|---|
| Maximum reverse voltage | 40 V |
| Typical forward voltage drop at 1.5 A | 0.45 V (typ) |
| Typical forward voltage drop at 3 A | 0.55 V (typ) |
| Maximum junction temperature | -55 °C to 150 °C |
| Junction‑to‑ambient thermal resistance | 62 °C/W |
| Package footprint | 0.6 mm profile |
| Bump size | 1.5 mm × 1.5 mm |
The device can handle a maximum average forward current of 1.5 A at 50 % duty cycle and 97 °C junction temperature.
It is rated for a maximum DC reverse voltage of 40 V.
Typical applications include reverse‑polarity protection, current steering, free‑wheeling, flyback and ORing, especially in handheld equipment such as cell phones, MP3 players and portable hard drives.
At 1.5 A the typical forward voltage drop is about 0.45 V.
