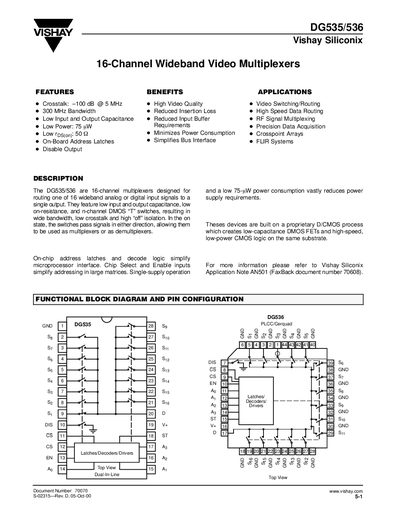

The DG535/536 are 16-channel multiplexers designed for routing one of 16 wideband analog or digital input signals to a single output.
The DG535 and DG536 are 16‑channel single‑ended multiplexers that route one of sixteen wideband analog or digital inputs to a common output. They feature low input and output capacitance, low on‑resistance, and n‑channel DMOS “T” switches, providing high bandwidth, low crosstalk and high off‑isolation. On‑chip address latches and decode logic simplify microprocessor interfacing, while a single‑supply operation reduces power consumption to about 75 µW.
These devices are suited for high‑frequency video and digital signal routing, precision data acquisition, and RF signal multiplexing. Typical applications include video switching, data acquisition systems, and any design requiring low‑power, high‑speed signal routing with minimal insertion loss.
| Analog Signal Range | 0‑10 V |
|---|---|
| On‑Resistance (EN) | ≈120 Ω |
| Supply Voltage Range (V+) | 10‑16.5 V |
| Bandwidth | 500 MHz |
| Maximum V+ to GND | +18 V |
The device can tolerate up to +18 V relative to GND.
Both devices provide 16 channels for signal routing.
The typical on‑resistance is about 120 Ω.
The bandwidth is specified up to 500 MHz.
