Vishay Thin Film MP Series provides surface mount networks with ±2ppm/°C tracking and ±0.05% ratio tolerance, ultra small size, 3 or 4 lead package, and exceptional stability for all surface mount applications. The standard SC70 package format with common standard resistance values provides easy selection for most applications requiring matched pair resistor elements. If you require a non-standard ratio, consult the applications engineering group as we may be able to meet your requirements with a custom design.

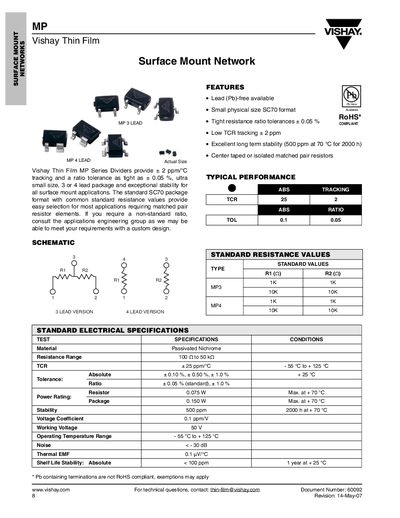

The Vishay MP Surface Mount Network handbook provides detailed information on the thin‑film resistor network series. It includes features such as lead‑free options, tight resistance‑ratio tolerances (+0.05 %), low TCR tracking (+2 ppm/°C) and excellent long‑term stability.
The document lists standard electrical specifications, mechanical dimensions, packaging options and global part‑numbering conventions. It also contains a legal disclaimer and contact information for technical support.
| Temperature Coefficient (TCR) | +25 ppm/°C |
|---|---|
| Power Rating | 0.150 W max at +70 °C |
| Stability | 500 ppm/2000 h at +70 °C |
| Working Voltage | 50 V |
| Operating Temperature Range | -55 °C to +125 °C |
The network can dissipate up to 0.150 W at +70 °C.
The TCR is specified as +25 ppm/°C.
