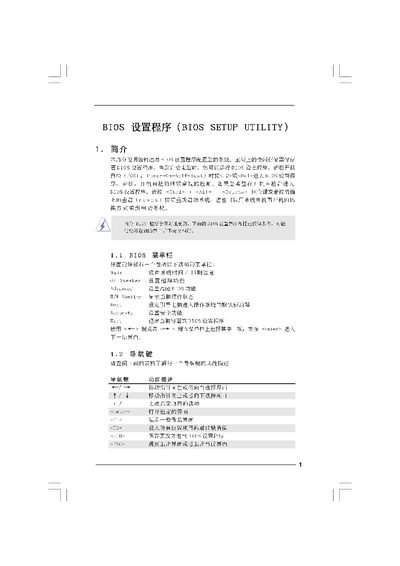

ASRock BIOS Setup Utility User Manual

This document is a BIOS setup utility that introduces the main settings options and provides an overview of the current system.

Brand: BIOS
Category: Other device
Document type: User Manual
Language: Chinese
Pages: 18
File format: PDF
File size: 856 KB
Published: 10 April, 2012
Updated: 28 September, 2023
MD5 checksum: 0BAE2E09CE0E852D38D0EE01003A86F5
PDF: ASRock BIOS Setup Utility User Manual PDF

About this manual

The BIOS Setup Utility provides a graphical interface for configuring hardware parameters such as CPU ratio, memory timings, chipset features, and boot options. It includes a Main Screen that shows system information and several advanced screens for detailed tuning.

Key functions include Instant Flash for BIOS updates, security password settings, and options to save, load, or discard changes. The manual also describes how to enable features like overclocking, memory remapping, and power‑saving modes. This manual is written in Chinese.

What's inside

Main Screen
Advanced Screen
CPU Configuration
Chipset Configuration
Boot Options
Security Screen
Instant Flash
Exit Options

Specifications

BIOS version	Y02.54
Supported CPU	Intel(R) Core i7 2.93 GHz
Supported memory type	DDR3

Frequently asked questions

What is the Instant Flash feature?

Instant Flash is an ASRock utility that updates the BIOS directly from within the BIOS setup.
